9.3
Metering Devices, Protective Relays, Software and Connectivity
Metering Devices
Product Selection Guide
Metering Selection Chart
Notes
1
Under typical operating conditions.
2
PXM 2260 only.
3
PXM 2270 only.
4
PXM 2280 only.
5
PXM 2290 only.
6
IQ 260 only.
7
Individual values reported to 85th
harmonic; anti-alias filtering prevents
higher frequencies from distorting
readings (see IEC 61000-4-7).
8
PMX 6000 only.
9
PXM 8000 only.
j
Optional.
k
At computer only.
Device Name
Accessories
See Page V3-T9-131

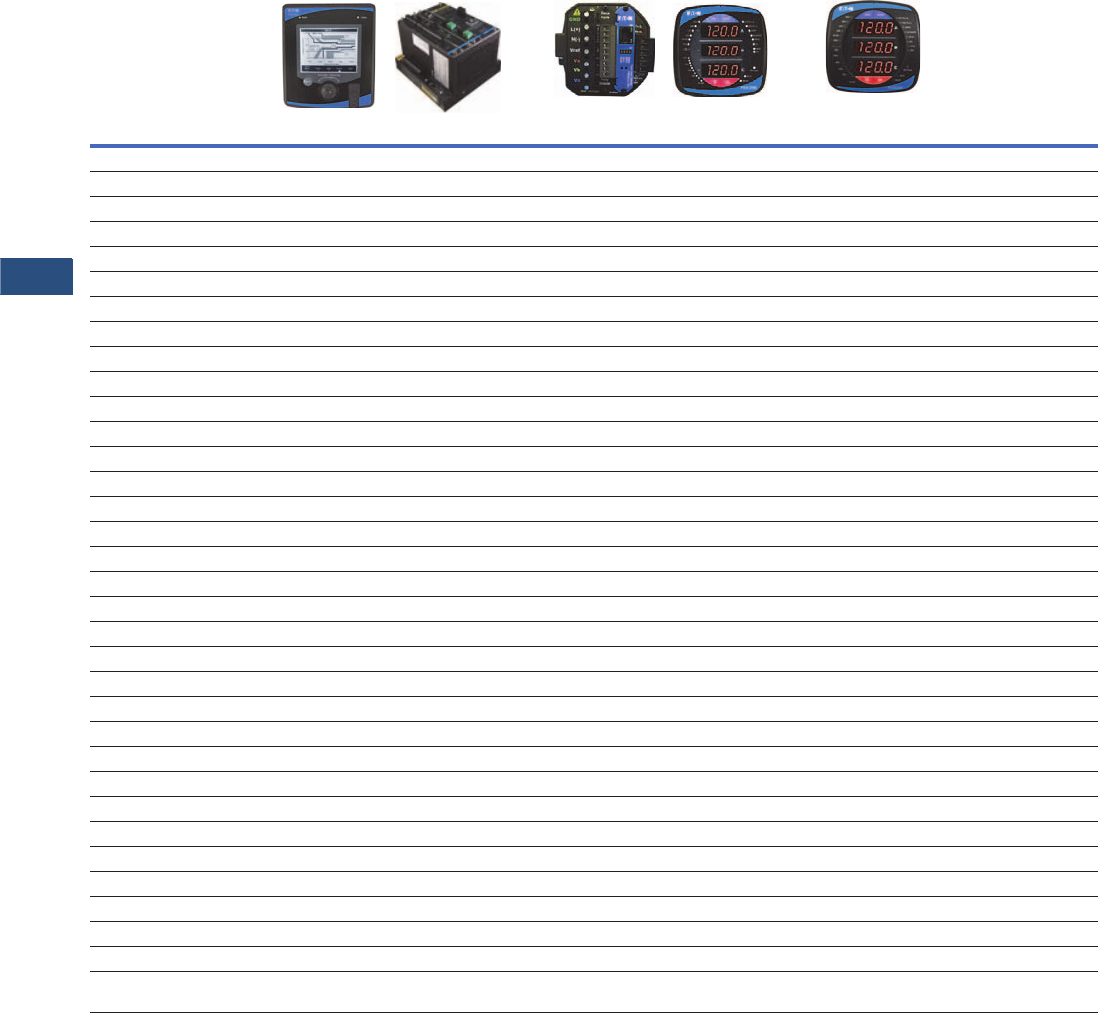

Power Xpert Meter 4000/6000/8000 Series
Power Xpert Meter 2000 Series IQ 250/260 Series
Section Page Number V3-T9-30 V3-T9-49 V3-T9-60
Electrical Parameters
Volts 0.1% of RV + 0.02% FS 0.1% of RV 0.1% of RV
Amperes 0.05% of RV + 0.01% FS 0.1% of RV 0.1% of RV
Current range (% of nominal) 0.005–20A (400%) 0.1–200% 0.1–200%
Watts 0.1% of RV + 0.0025% FS 0.2% of RV 0.2% of RV
VARs 0.1% of RV + 0.0025% FS 0.2% of RV 0.2% of RV
VA 0.1% of RV + 0.0025% FS 0.2% of RV 0.2% of RV
PF-apparent 0.1% 0.2% of RV 0.2% of RV
PF-displacement 0.1% — —
Frequency ±0.01 Hz ±0.03 Hz ±0.03 Hz
THD-voltage 127th 40th
2345
40th
6
THD-current 127th 40th
2345
40th
6
Watthours ±0.2% per ANSI C12.20 0.2 Class
1
±0.2% per ANSI C12.20 0.2 Class
1
±0.2% per ANSI C12.20 0.2 Class
1
VAR-hours ±0.2% per ANSI C12.20 0.2 Class
1
±0.2% per ANSI C12.20 0.2 Class
1
±0.2% per ANSI C12.20 0.2 Class
1
VA-hours ±0.2% per ANSI C12.20 0.2 Class
1
±0.2% per ANSI C12.20 0.2 Class
1
±0.2% per ANSI C12.20 0.2 Class
1
Ampere-demand 0.05% of RV + 0.01% FS ±0.1% per ANSI C12.20 0.2 Class ±0.1% per ANSI C12.20 0.2 Class
Watt-demand ±0.2% per ANSI C12.20 0.2 Class
1
±0.2% per ANSI C12.20 0.2 Class
1
±0.2% per ANSI C12.20 0.2 Class
1
VAR-demand ±0.2% per ANSI C12.20 0.2 Class
1
±0.2% per ANSI C12.20 0.2 Class
1
±0.2% per ANSI C12.20 0.2 Class
1
VA-demand ±0.2% per ANSI C12.20 0.2 Class
1
±0.2% per ANSI C12.20 0.2 Class
1
±0.2% per ANSI C12.20 0.2 Class
1
Revenue accuracy ±0.2% per ANSI C12.20 0.2 Class
1
ANSI C12.20 (0.2%) ANSI C12.20 (0.2%)
Individual ampere harmonics 85th
7
40th
345
—
Individual voltage harmonics 85th
7
40th
345
—
Interharmonics Yes — —
Minimum and/or Maximum Values
Volts L-L, L-N, N-G, VAUX L-L L-L, L-N L-L, L-N
Current A, B, C, N, G A, B, C, N A, B, C
Power Watt, VAR, VA Watt, VAR, VA Watt, VAR, VA
Power Factor Apparent/displacement Apparent Apparent
Frequency Hertz Hertz Hertz
THD Amperes/volts (L-L, L-N, AUX L-L) Amperes/volts
2345
Amperes/volts
6
Demand values kW, kVAR, kVA, amperes kW, kVAR, kVA, amperes kW, kVAR, kVA, amperes
Trend analysis 2 / 4
8
/ 8
9
GB 256 / 512
2
/ 768
345
MB 128 KB
j
Event logging 2 / 4
8
/ 8
9
GB 100,000 alarms/events with timestamp
k
Disturbance recording 2 / 4
8
/ 8
9
GB
60 cycles per event
768 MB
45
up to 64 cycles per event
45
—
Legend: PG = Programmable
FS = Full scale
RV = Read value
Auxiliary voltage
(optional) = Provides three additional voltage inputs to the
meter: Va2, Vb2, Vc2.
Interharmonics = Power Xpert Meter 6000/8000 supported.
