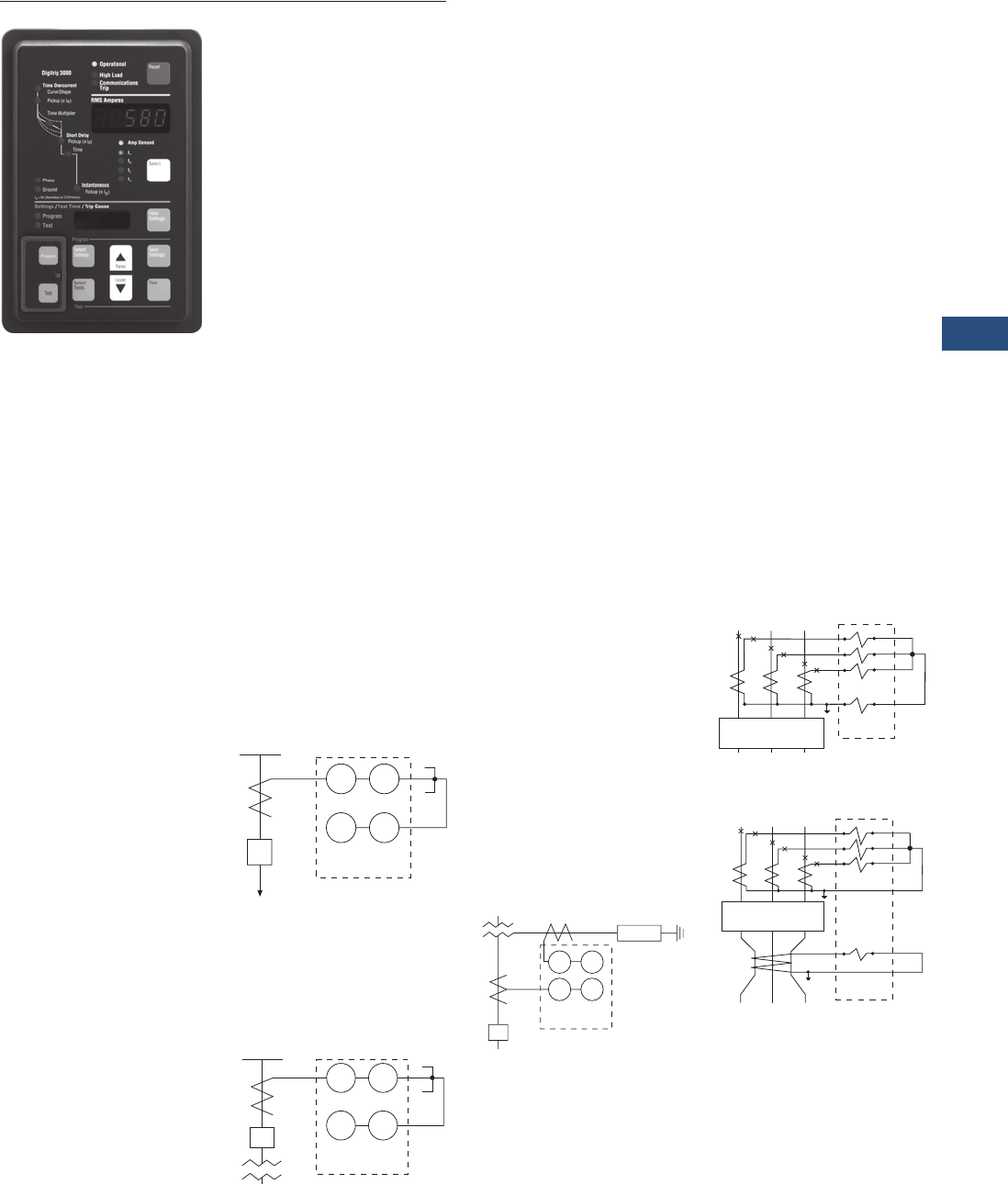

Digitrip 3000
Product Description
●
Microprocessor-based,
three-phase and ground
overcurrent relay
●
Independent phase and
ground measuring circuits
and operation
●
Inverse time (51), short
delay (50, 2) and
instantaneous (50)
protection
●
Eleven time overcurrent
characters including ANSI,
IEC and thermal protection
curves
●
Phase and ground
ampmeter and peak
demand functions
●
INCOM communication
port
●
Fixed mount or optional
quick release drawout
case design
●
Dual-source power supply
option for AC control
power applications
Application Description
Eaton’s Digitrip 3000
microprocessor-based relay
provides reliable three-phase
and ground overcurrent
protection for all voltage
levels. It can be used for
any application where
instantaneous and/or time
overcurrent protection
is required. It is most
commonly used as primary
feeder circuit protection,
see figure below.
Primary Feeder
Circuit Protection
The Digitrip 3000 may be
applied as the transformer
primary protection or as
backup to the differential
protection, see figure below.
Transformer Overcurrent
Protection
The Digitrip 3000 may be
connected to the secondary
side of a delta-wye grounded
transformer with the ground
element connected to a
separate CT in the neutral
connection of the
transformer. With this
connection, a lower CT ratio
and a pickup setting can
be used to provide more
sensitive ground fault
protection especially for
resistance grounded
systems, see figure below.
Transformer Secondary
Protection with Neutral
CT Connection
The Digitrip 3000 ground
overcurrent element can be
connected in the residual
circuit of the phase CTs as
shown in the top figure or
to a separate ground CT as
shown in last figure.
Residual Ground
Connection
Separate Zero Sequence
Ground CT Connection
