9.4
Metering Devices, Protective Relays, Software and Connectivity
Protective Relays
Product Selection

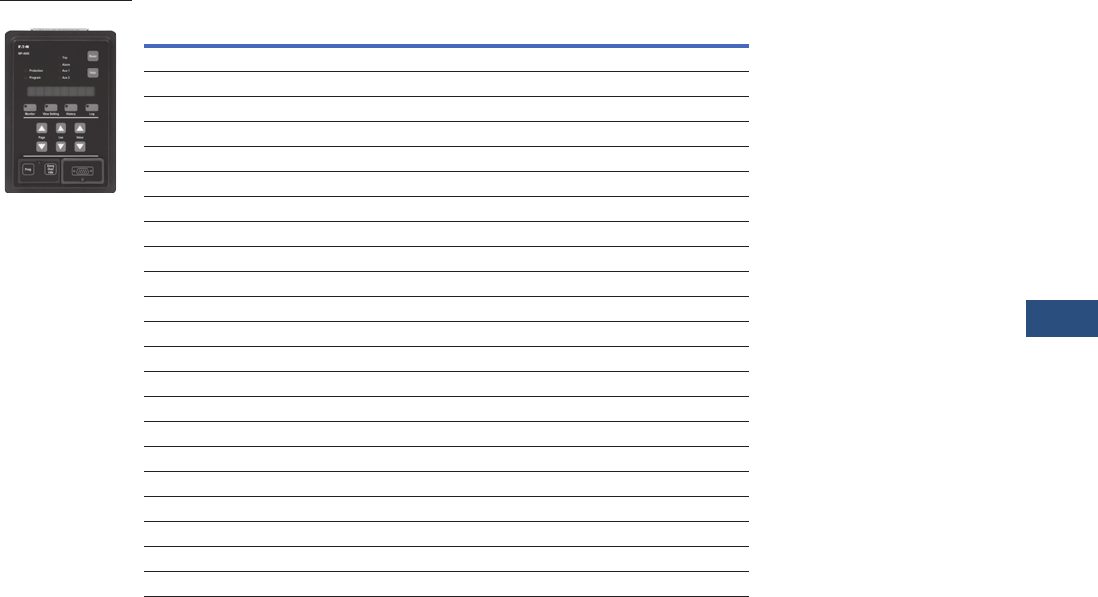

MP-4000 Ordering Information
Options and Accessories
Additional Related Products
by Eaton’s Cutler-Hammer Series
The MP-4000 is available in
either a fixed mount or Quick
Release Drawout Case. Both
mountings use the same
panel cutout.
The Universal RTD module
(URTD) is required when the
motor is equipped with RTDs
that you wish to monitor and
use for protection. The URTD
can be mounted near the
motor to reduce RTD wiring
and costs.
The MP-4000 motor protection
is design-ed to operate from
120 Vac or 240 Vac auxiliary
control power. The MP-4000
motor relay can be used with
dc control power with the
addition of the IQDCPS. The
IQDCPS is an inverter from
DC to AC.
Description Catalog Number
MP-4000 drawout, 5A with RS-232 MP4011
MP-4000 drawout, INCOM, 5A with RS-232 MP4012
MP-4000 drawout, Modbus, 5A with RS-232 MP4013
MP-4000 drawout, DeviceNet, 5A with RS-232 MP4014
MP-4000 drawout, 1A with RS-232 MP4111
MP-4000 drawout, INCOM, 1A with RS-232 MP4112
MP-4000 drawout, Modbus, 1A with RS-232 MP4113
MP-4000 drawout, DeviceNet, 1A with RS-232 MP4114
MP-4000 fixed case, 5A with RS-232 MP4010
MP-4000 fixed case, INCOM, 5A with RS-232 MP4010INCOM
MP-4000 fixed case, Modbus, 5A with RS-232 MP4010MODBUS
MP-4000 fixed case, DeviceNet, 5A with RS-232 MP4010DEVICEN
MP-4000 fixed case, 1A with RS-232 MP4110
MP-4000 fixed case, INCOM, 1A with RS-232 MP4110INCOM
MP-4000 fixed case, Modbus, 1A with RS-232 MP4110MODBUS
MP-4000 fixed case, DeviceNet, 1A with RS-232 MP4110DEVICEN
MP-4000 fixed case, INCOM, 5A with RS-232, URTD MP4010VPI
MP-4000 fixed case, Modbus, 5A with RS-232, URTD MP4010VPM
MP-4000 fixed case, DeviceNet, 5A with RS-232, URTD MP4010VPD
MP-4000 fixed case, INCOM, 1A with RS-232, URTD MP4110VPI
MP-4000 fixed case, Modbus, 1A with RS-232, URTD MP4110VPM
MP-4000 fixed case, DeviceNet, 1A with RS-232, URTD MP4110VPD
MP-4000
