Metering Devices, Protective Relays, Software and Connectivity
Protective Relays
Communication Software
Eaton provides two types
of communication software.
The first is PowerPort. It runs
on a PC or laptop for easy
access to a single relay
to change set points or
configuration and to view
metered values and stored
data. PowerPort is free and
can be downloaded from
the Eaton Web site at
the following URL:
www.eaton.com; search
for “PowerPort.”
The second package is
PowerNet. PowerNet is a
power management software
package that is designed
for continuous, remote
monitoring of many devices.
It provides all the functionality
of PowerPort plus additional
functions such as billing,
trending and graphics.
Contact your local Eaton
representative for more
information on PowerNet
software.

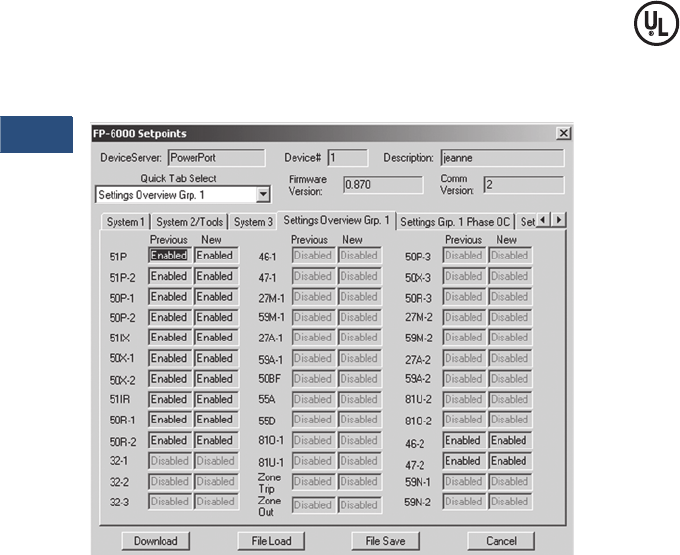

PowerPort and PowerNet Protection Overview Screen
Standards and Certifications
Compliance
●
UL recognized, File #
E154862 (FP6200-00 5A
CT model only)
●
UL 1053 (1994) recognized
●
ANSI C37.90 (1989)
●
EN 55011 (1991)
●
EN 61000-6-2 (1999)
Emission Tests
●
EN 55011 (1991): Group 1
Class A (CISPR-11,
Class A)
●
FCC 47 CFR Chapter 1:
Part 15 Subpart b Class A
Immunity Tests
●
ANSI C37.90.1 (1989):
surge withstand capability
●
ANSI C37.90.2 (1995):
EMI immunity to 35 V/m
●
EN 61000-4-2 (1995):
ESD Rating of 8 kV
●
EN 61000-4-3 (1997):
radiated EM field at 10 V/m
●
EN 61000-4-4 (1995): fast
transient burst at 2 kV
●
EN 61000-4-5 (1995):
surge immunity test
●
EN 61000-4-6 (1996):
conducted RF at 10 V/m
●
EN 61000-4-8: power
frequency magnetic
field immunity
●
EN 61000-4-11 (1994):
voltage dips and variations
