9.3
Metering Devices, Protective Relays, Software and Connectivity
Metering Devices

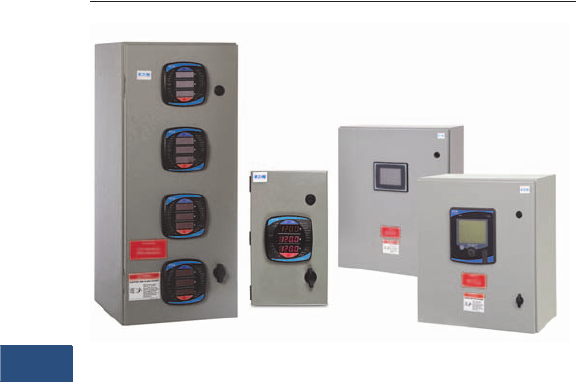

NEMA 12 Single- and Multi-Unit Enclosed Meters
Contents
Description
Metering Products Family. . . . . . . . . . . . . . . . . . . . .
V3-T9-21
Power Xpert Meter 4000/6000/8000 Series. . . . . . . V3-T9-30
Power Xpert Meter 2000 Series . . . . . . . . . . . . . . . . V3-T9-49
IQ 250/260 Series Electronic Power Meters . . . . . . V3-T9-60
IQ 130/140/150 Series Electronic Power Meters . . . V3-T9-66
IQ 150S/250S Self-Enclosed Electronic Meters . . . . V3-T9-71
IQ 35M . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-76
IQ Analyzer 6400/6600 Series . . . . . . . . . . . . . . . . . V3-T9-79
IQ DP-4000 Series . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-87
IQ 230 Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-93
Power Xpert Multi-Point Meter . . . . . . . . . . . . . . . . . V3-T9-100
IQ Energy Sentinel™ . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-112
PM3 Monitoring and Metering Module . . . . . . . . . . V3-T9-121
Current Transformers (CTs). . . . . . . . . . . . . . . . . . . . V3-T9-122
Clamp-On Current Transformers. . . . . . . . . . . . . . . . V3-T9-131
IQ Flange . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-134
Panel Mounting Adapter Kit . . . . . . . . . . . . . . . . . . . V3-T9-135
Enclosed Meters
Features and Benefits . . . . . . . . . . . . . . . . . . . . .
V3-T9-137
Catalog Number Selection. . . . . . . . . . . . . . . . . . V3-T9-139
Product Selection . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-139
Technical Data and Specifications . . . . . . . . . . . . V3-T9-140
Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-141
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-151
Enclosed Meters
Product Description
The Eaton enclosed meter
line provides a complete
energy metering and data
acquisition solution in a single
enclosure. Designed for
Eaton’s IQ 35M, IQ 150, IQ
250/260, and Power Xpert
®
2000/4000/6000/8000 and
Multi-Point Meters, Eaton’s
enclosed meter line offers
mounting and installation
flexibility, especially in retrofit
applications where no
metering compartment or
mounting space is available in
the existing electrical
distribution equipment or
where installation time is a
premium. Factory designed
and wired, Eaton’s enclosed
meter line offers savings in
labor and installation costs
because input current and
voltage wiring as well as I/O
wiring is prewired to terminal
blocks inside the enclosure.
The enclosed meter line has
two standard offerings:
single-, prewired unit (specific
IQ 150, IQ 250/260, PXM
2000, PXM 4000/6000/8000
or PXMP) and a multi-unit
(specific IQ 150, IQ 250/260
or IQ 35M models). Because
the multi-unit automatically
includes Eaton’s Power Xpert
Gateway 200E, it facilitates
measurement and verification
of the energy usage on
processes and in buildings.
This provides a convenient
way to monitor energy usage
from multiple points, collect
and log specific energy use
parameters, and display and
generate logs for historical
energy usage reports. Simply
put, Eaton’s multi-unit
enclosed meter solution
helps meet any
measurement and verification
requirement to show energy
efficiency improvements and
results. In addition to the
standard offering, Eaton can
also provide an enclosed
metering solution tailored
around your project needs.
Application Description
Factory designed and wired
to fit various Eaton power and
energy meters at varying
price points, Eaton’s
enclosed meter line offers
savings in labor and
installation costs because
input current and voltage
wiring, as well as I/O wiring,
is prewired to terminal blocks
inside the enclosure.
Standalone, enclosed meters
are ideal for new metering
applications where no
metering existed previously,
for retrofit installations where
energy monitoring is a must
or where ease of installation
is required.
●
Health care facilities
●
Educational facilities and
campuses
●
Industrial facilities
●
Commercial facilities
●
Government facilities
The multi-unit offering
consolidates energy-related
data available from the
meters in the enclosure, but
also allows for external
meters to be added to the
embedded Power Xpert
Gateway 200E. Through the
Power Xpert Gateway 200E’s
embedded Web server,
information can be presented
in a variety of ways; a
standard Web browser being
the most widely used
method.
The enclosed product is a
standalone solution that is
ideal for many infrastructure
designs. Further, as needs
change and grow, the
enclosed product can be
integrated through Power
Xpert Software into a broader
solution that encompasses
other intelligent hardware and
can integrate with third-party
network management
systems (NMS) or building
management systems (BMS)
for system-wide monitoring
and reporting of energy
and power.
