9.3
Metering Devices, Protective Relays, Software and Connectivity
Metering Devices

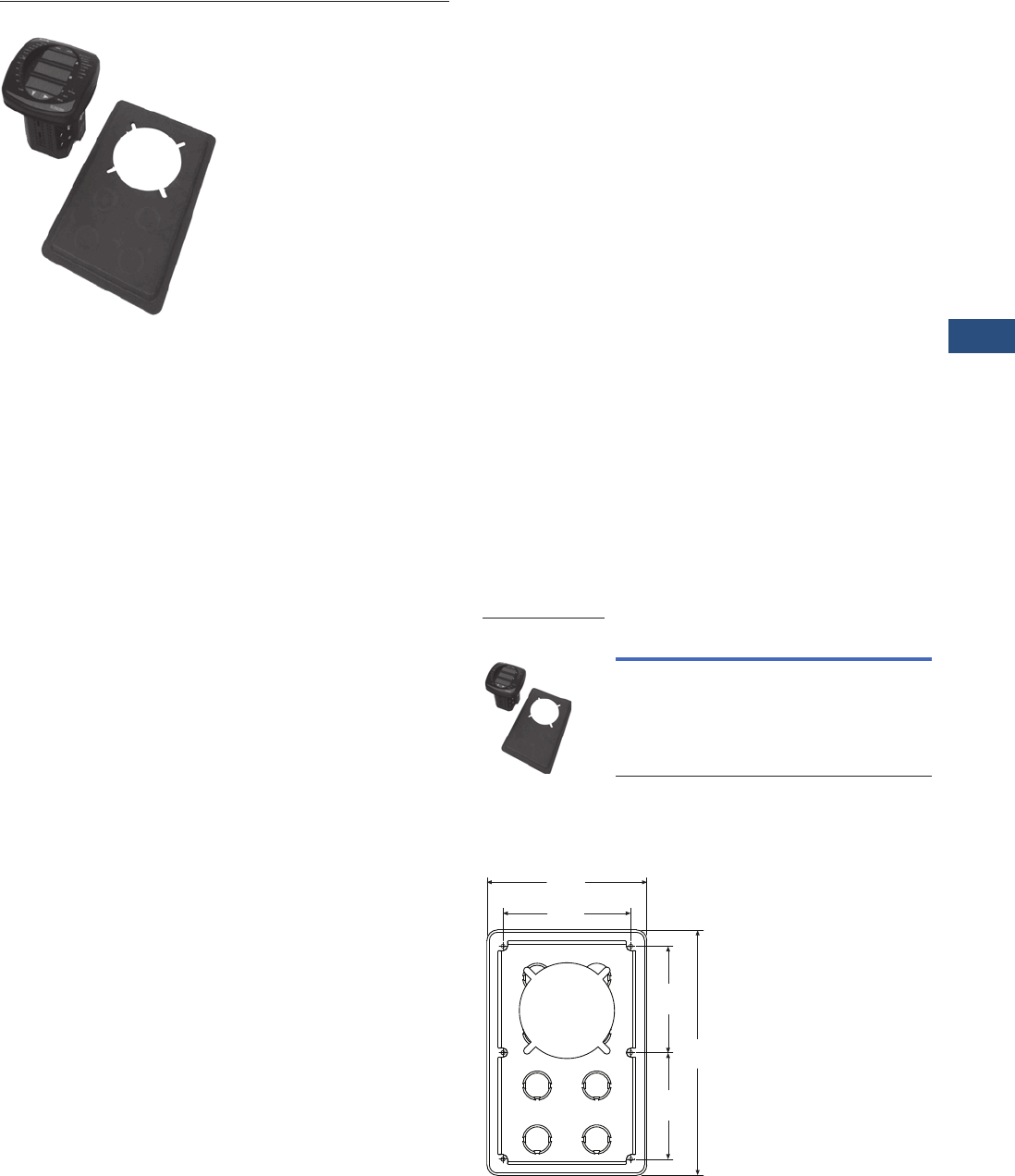

Panel Mounting Adapter Kit for IQ 100/200 Series and PXM 2000 Meters
Contents
Description
Metering Products Family. . . . . . . . . . . . . . . . . . . .
V3-T9-21
Power Xpert Meter 4000/6000/8000 Series . . . . . . V3-T9-30
Power Xpert Meter 2000 Series . . . . . . . . . . . . . . . V3-T9-49
IQ 250/260 Series Electronic Power Meters. . . . . . V3-T9-60
IQ 130/140/150 Series Electronic Power Meters . . V3-T9-66
IQ 150S/250S Self-Enclosed Electronic Meters . . . V3-T9-71
IQ 35M . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-76
IQ Analyzer 6400/6600 Series . . . . . . . . . . . . . . . . V3-T9-79
IQ DP-4000 Series . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-87
IQ 230 Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-93
Power Xpert Multi-Point Meter . . . . . . . . . . . . . . . . V3-T9-100
IQ Energy Sentinel™ . . . . . . . . . . . . . . . . . . . . . . . V3-T9-112
PM3 Monitoring and Metering Module . . . . . . . . . V3-T9-121
Current Transformers (CTs). . . . . . . . . . . . . . . . . . . V3-T9-122
Clamp-On Current Transformers . . . . . . . . . . . . . . . V3-T9-131
IQ Flange . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-134
Panel Mounting Adapter Kit
Enclosed Meters. . . . . . . . . . . . . . . . . . . . . . . . . . .
V3-T9-136
Panel Mounting Adapter Kit for IQ 100/200 Series
and PXM 2000 Meters
Product Description
The flange adapter plate can
be installed as follows:
1. Remove the old meter
from the panel or door.
Many IQ metering
products use the typical
IQ drilling pattern shown
at right for mounting
2. Install the flange adapter
plate. Mount it from the
rear using the six screws
provided in the kit. The
flange adapter plate
screw hole pattern
shown at right should
match the typical IQ
drilling pattern. If not,
perform the next step
3. Drill six holes in the panel
or the door to mount the
flange adapter plate.
Follow the typical IQ
drilling pattern. You need
only the top, center and
bottom sets of holes
4. Install the new IQ 100/
200 Series or PXM 2000
meter in the flange
adapter plate. Secure it
from behind with four flat
washers, lock washers
and nuts provided with
the meter
Product Selection
Panel Mounting Adapter Kit
Dimensions
Flange Adapter Plate Screw Hole Pattern
Description Catalog Number
Panel mounting adapter kit
IQ 100/200 and PXM 2000 Series
adapter kit to IQ Analyzer/
IQ DP-4000/IQ Data
IQ250-PMAK
Panel Mounting
Adapter Kit
6.72
(170.7)
5.38
(136.7)
4.45
(113.0)
10.25
(260.4)
4.45
(113.0)
