Metering Devices, Protective Relays, Software and Connectivity

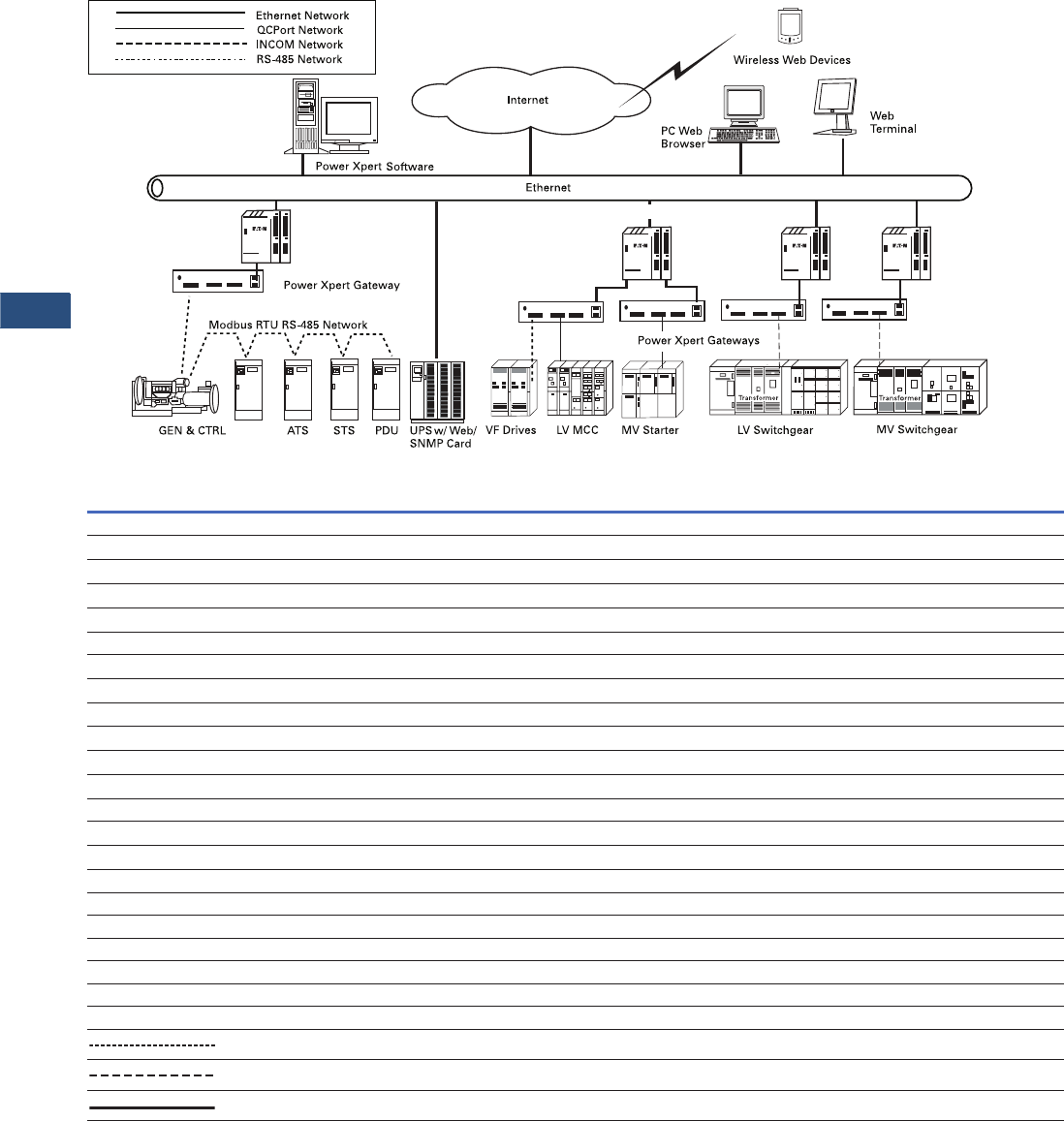

Power Xpert Architecture
Power Xpert Software
Power Xpert
Ethernet Switch
Power Xpert Ethernet Switches
Functions/Devices
Drawing Symbol
Function Description Eaton Device
Monitoring Equipment
MM6GWP
Power Quality Meter Analyzer Power Xpert Meter 4000/6000/8000
MM4&P
Meter Monitor and Protection IQ DP-4000
MM
Meter Monitor IQ 100/IQ 200
SMM
Sub-Metering Module IQ Energy Sentinel
Overcurrent/Short Circuit Protection
MVTU
Medium Voltage Relay (> 600V) DT-3000, FP-5000
LVTU
Low Voltage Trip Unit (d 600V) Digitrip RMS-810, 910, 520 MC or 1150/Digitrip OPTIM 750 or 1050
Motor Protection and Control
MPR
Motor Protective Relay MP-3000
MMS
Microprocessor Motor Starter IT. Starter
VFD
Variable Frequency Drive SVX9000
Central Monitoring Panels
BIM II
Breaker Interface Module II BIM II (used with Digitrip OPTIM or Digitrip RMS)
LDISP
Local Display and Sub-network Master Used with IQ Multipoint Energy Submeter II or with Energy/Power Sentinels
Other Devices
ATS Automatic Transfer Switch IQ Transfer
RTD Resistance Temperature Universal RTD Module
ADR Addressable Relay ADRII
C Product Communication Device IPONI
R Resistor-End of Line Resistor
■
Terminal Block IP, IN, IS Terminal Designation
Factory Twisted Pair Wiring IMPCABLE or Belden YR29090 or Belden 9463 Family
Field Twisted Pair Wiring IMPCABLE or Belden YR29090 or Belden 9463 Family
Field Ethernet Backbone CAT5 or multimode fiber
