9.3
Metering Devices, Protective Relays, Software and Connectivity
Metering Devices
Features
IQ Energy Sentinel Features
.
Eaton’s Breaker Mount
Eaton’s breaker mount
IQ Energy Sentinel installs
in less than 10 minutes on
the load side of an Eaton
F-Frame (150A),
J-Frame (250A), or
K-Frame (400A) circuit
breaker.
Energy Sentinel Features
Features Benefits
■ Monitors (accuracy stated full scale)
Kilowatts ±1.0%
Kilowatts demand ±1.0%
Kilowatt Hour ±1.0%
■ Built-in CTs version up to 400A or external CTs version up to 4000A
■ Breaker, panel or DIN rail mounted
■ Powered directly off the line
■ Built-in communication capability
Address set by DIP switches
Communication at 9600 baud
Noise immune INCOM protocol
■ Choice of operator interfaces
Subnetwork Master Local Display
Breaker Interface Module (BIM)
Power Management Energy Billing software
Power Management Software
■ One device replaces multiple meters and/or transducers
■ Improved system accuracy
■ Savings in product cost
■ Savings in space
■ Savings in installation cost
■ No external power source is needed
■ Permits remote monitoring and interconnection with programmable logic controllers
and building management systems. For further information see section on Power
Management Software Systems
■ Designed to interface directly with Power Management Software Energy Billing software
■ Flexibility—displays what is needed where it is needed
■ Power Management Software

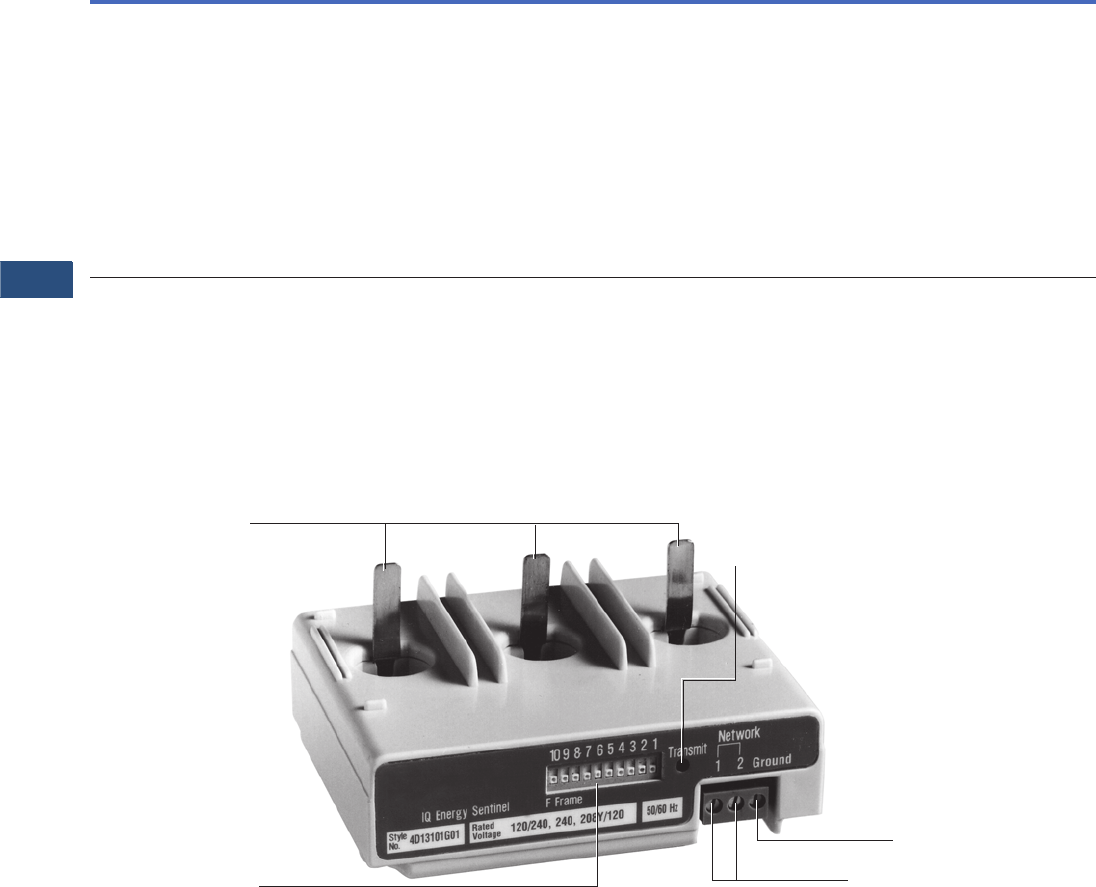

DIP Switch
Address
Communications
Connections
Ground/Neutral
Connection
Voltage
Ta n g s
Trans mit
LED
