Metering Devices, Protective Relays, Software and Connectivity

Metering Devices

Wiring Diagrams

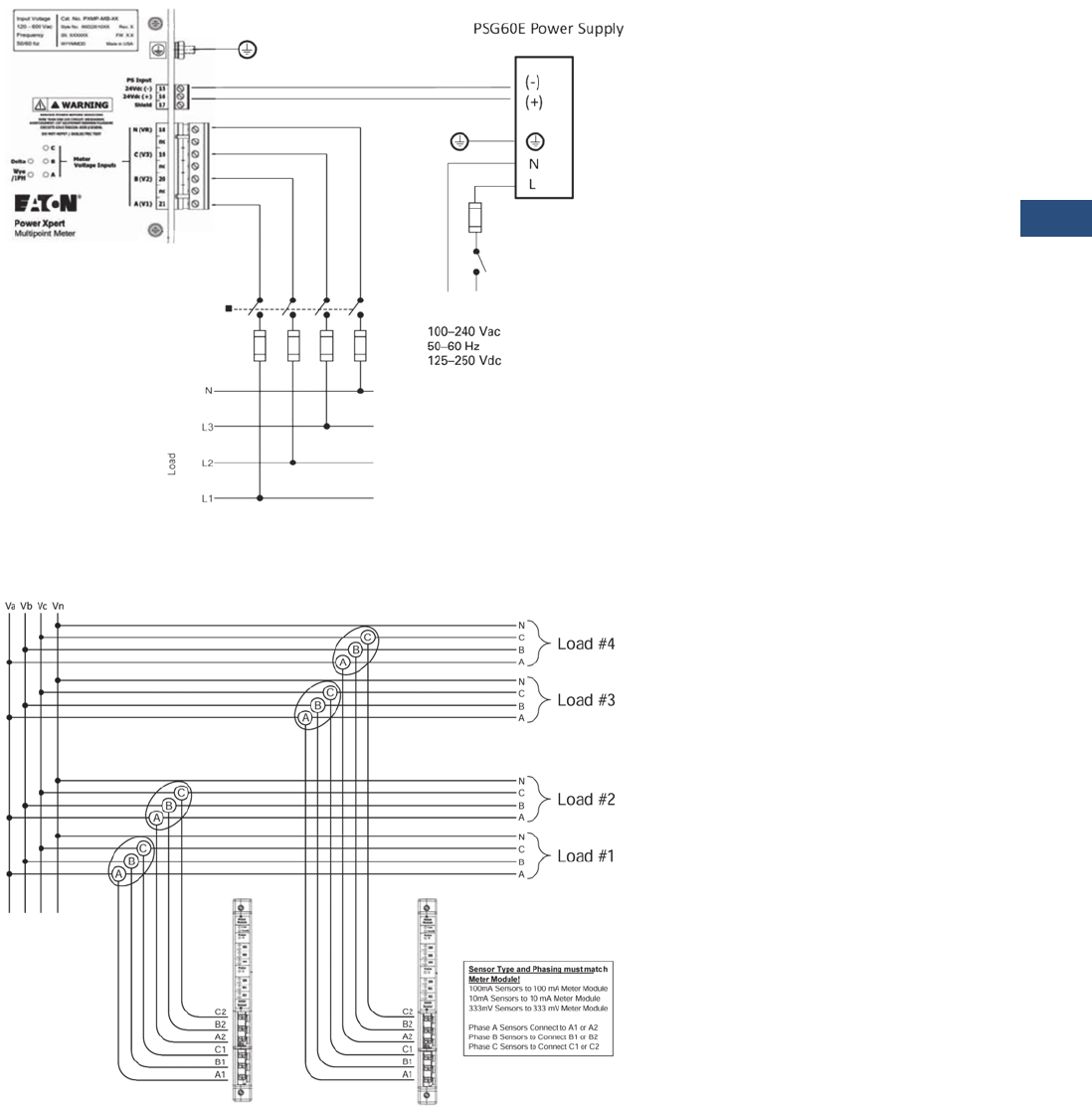

Wiring for PXMB-MB

Note: For all voltage connections—fuses should be sized in accordance with best practices to protect the instrumentation wire.

Four-Wire Wye Voltage Connection Inputs

Three-Phase, Four-Wire Service Current Sensor Connections
