ECR-2400 Node Hardware
10156-04 2 - 1 EkaNet Hardware Manual
Eka Proprietary and Confidential
2. ECR-2400 Node Hardware
2.1 Overview
The ECR-2400 node is an under-the-glass board designed for installation in an
ECR-2400 meter. The node plugs into the meter and provides an easy and
reliable way to enable meters to automatically form a wireless mesh network.
This section describes the procedures to integrate an ECR-2400 node with a
ECR-2400 meter.
2.1.1 ECR-2400 Node Features
ECR-2400 nodes:
• operate in the 2.4 GHz band
• fit “under the glass”
• performs automatic time synchronization
• provide real-time access to interval data
• contain local non-volatile data storage
• provide full wireless routing capability

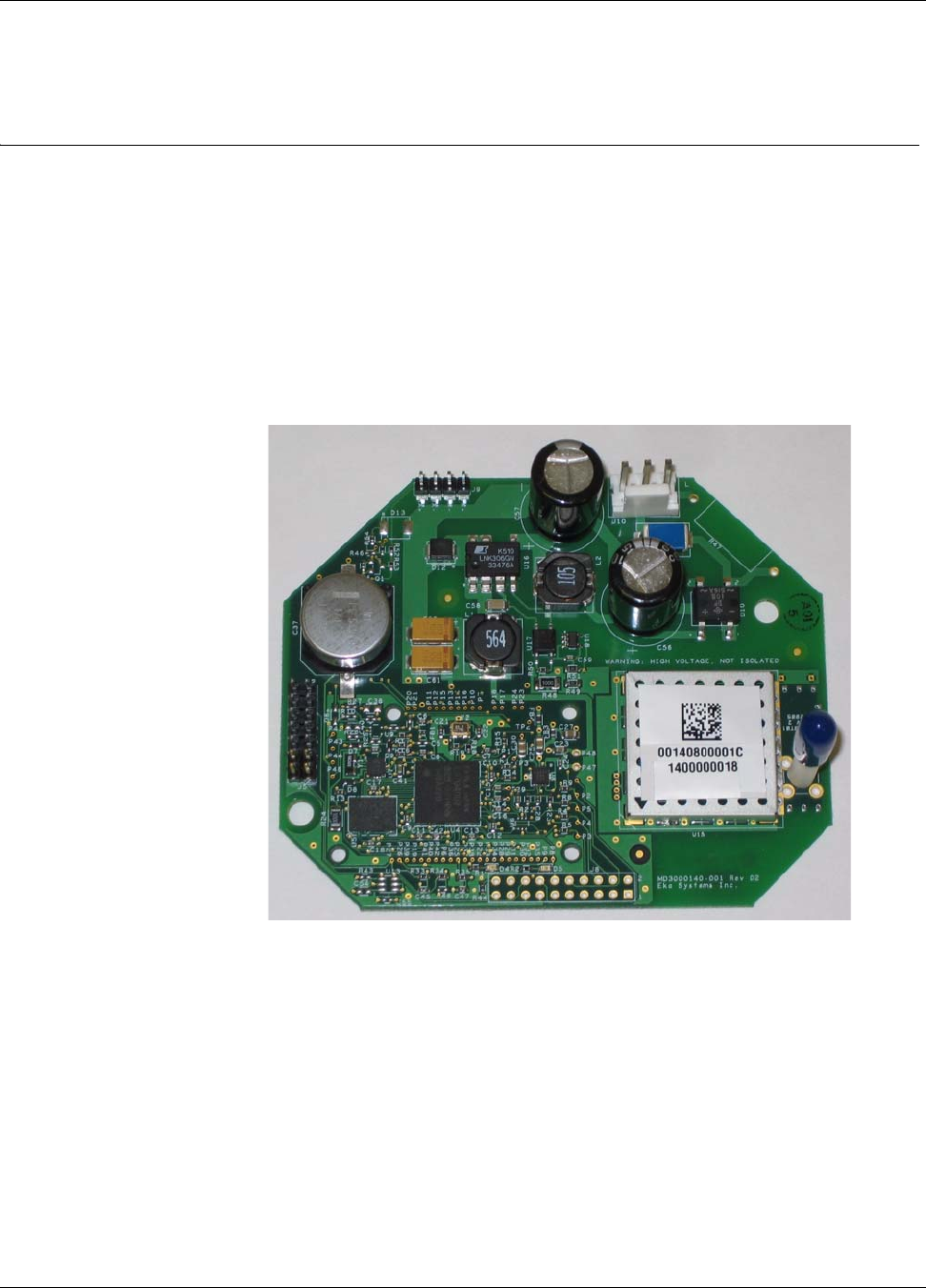

Figure 2.1 ECR-2400 Node
