Gateway Hardware
10156-04 5 - 7 EkaNet Hardware Manual
Eka Proprietary and Confidential
2. Attach the gateway’s power supply to the 5V connection on the gateway.
3. Plug the power supply into an electrical outlet.
.

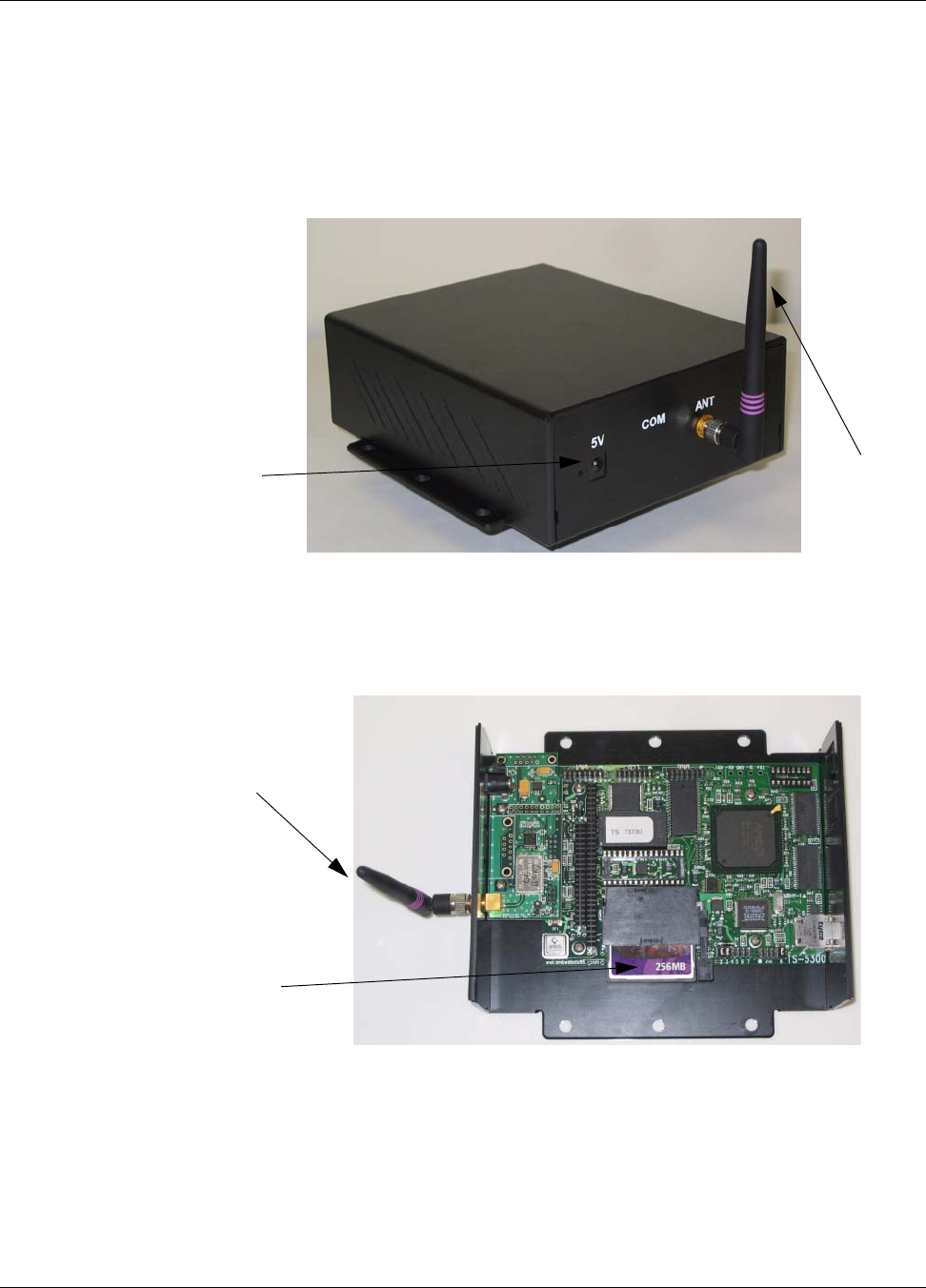

Figure 5.6 Indoor Gateway - Power Connection
Antenna
Power
connection
Figure 5.7 Indoor Gateway - Cover Removed
Compact
Flash Card
Antenna
