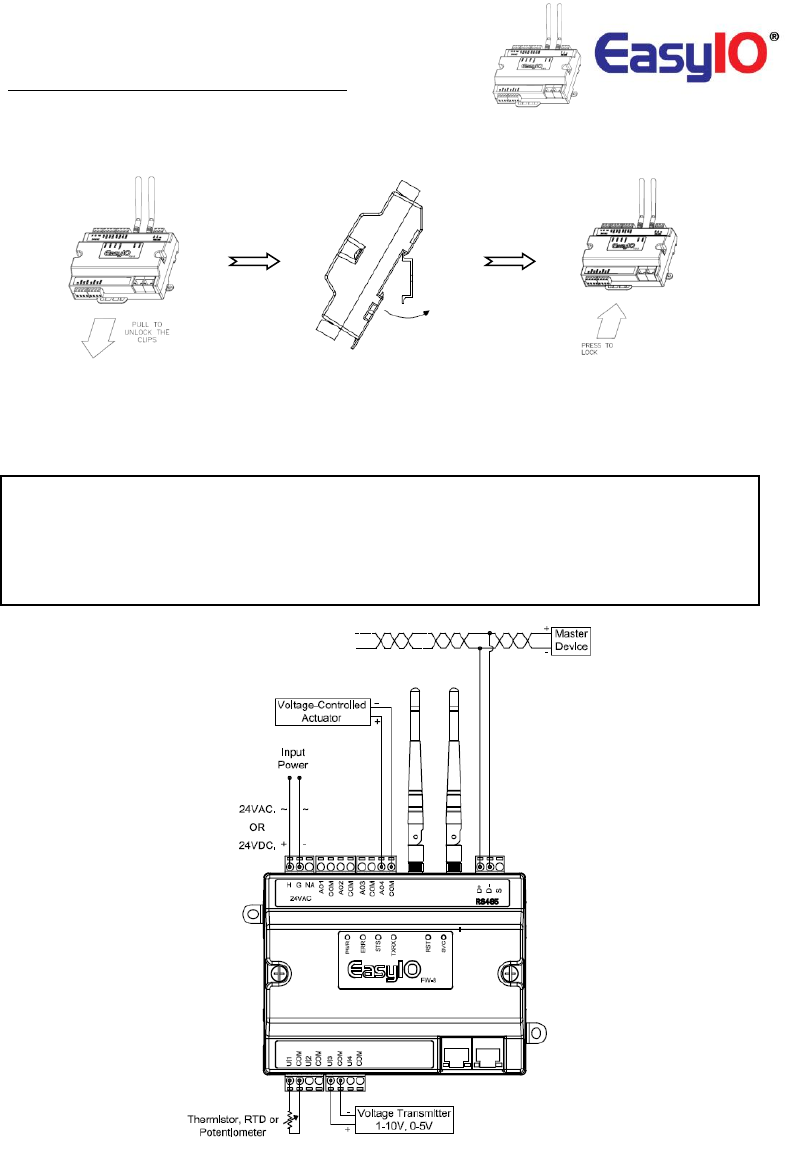

EasyIO FW-08 V3 - Instruction Manual

V1.01

Installation Guide on typical industrial 35mm DIN rail

Pull to Unlock the Clip Push to lock clip

Wiring Guide

WARNING: Class 2 Devices Wiring Only – Do Not Reclassify and Install as Class 1, 3 or Power and Lighting

Wiring

ATTENTION : Câblage destiné aux équipements de classe 2 seulement. Ne pas les reclasser ni les installer

avec un câblage de classe 1 ou de classe 3, ou avec un câblage d'alimentation ou d'éclairage.

Summary of content (6 pages)

PAGE 1
EasyIO FW-08 V3 - Instruction Manual Installation Guide on typical industrial 35mm DIN rail Pull to Unlock the Clip Push to lock clip Wiring Guide WARNING: Class 2 Devices Wiring Only – Do Not Reclassify and Install as Class 1, 3 or Power and Lighting Wiring ATTENTION : Câblage destiné aux équipements de classe 2 seulement. Ne pas les reclasser ni les installer avec un câblage de classe 1 ou de classe 3, ou avec un câblage d'alimentation ou d'éclairage. V1.
PAGE 2
EasyIO FW-08 V3 - Instruction Manual Electrical Rating Input Rating (UL Listing) Type Supply Universal Inputs Output Rating (UL Listing) Type Universal Output Rating Terminal 24Vac(+/-5%), 20VA; 24Vdc(+15%/-15%), 15VA, Class 2 Voltage: 0-10 Vdc Class 2; Resistance: 500-500K Ohms H (Vcc), G (Ground) Rating Voltage: 0-10V, Class 2 UI1 ~ 4 and COM (4 sets) Terminal AO1 ~ 4 and COM (4 sets) Communication (UL Listing) Type EIA/RS-485 Ethernet Ports (2) Wireless Rating Description Standard Band Frequenc
PAGE 3
EasyIO FW-08 V3 - Instruction Manual FCC Statement Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
PAGE 4
EasyIO FW-08V V3 - Instruction Manual Installation Guide on typical industrial 35mm DIN rail Pull to Unlock the Clip Push to lock clip Wiring Guide WARNING: Class 2 Devices Wiring Only – Do Not Reclassify and Install as Class 1, 3 or Power and Lighting Wiring ATTENTION : Câblage destiné aux équipements de classe 2 seulement. Ne pas les reclasser ni les installer avec un câblage de classe 1 ou de classe 3, ou avec un câblage d'alimentation ou d'éclairage. V1.
PAGE 5
EasyIO FW-08V V3 - Instruction Manual Electrical Rating Input Rating (UL Listing) Type Supply Universal Inputs Output Rating (UL Listing) Type Universal Output Rating Terminal 24Vac(+/-5%), 20VA; 24Vdc(+15%/-15%), 15VA, Class 2 Voltage: 0-10 Vdc Class 2; Resistance: 500-500K Ohms H (Vcc), G (Ground) UI1 ~ 4 and COM (4 sets) Rating Voltage: 0-10V, Class 2 Terminal AO1 ~ 4 and COM (4 sets) Rating 0 ~ 500 Pa / 0 ~ 2 Inch of water Terminal MOD 1 Differential Pressure sensor Type Air Flow Sensor Comm
PAGE 6
EasyIO FW-08V V3 - Instruction Manual FCC Statement Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
