Using the power supply
Sounds
Key sound Default: NO
= YES A short beep signalises a button press
= NO No signal if keys are pressed
Alarm sound Default: YES
= YES If an alarm or warning occurs an acoustic signal is
emitted (beep) in short intervals
= NO No acoustic signal for alarms/warnings
7.5 Conguring the graphic display
Display +
The menu page Display lets you congure all parameters
related to the graphic display.
Backlight Default: YES
= YES The backlight is permanently on
= delay 60s The backlight will be switched off with
a delay of 60s after a button or a rotary
knob has been used the last time
Contrast Default: 70
= { 40...100 }
The contrast can be adjusted to suit the needs of the location
where the unit is installed and for a clearer view at the values.
7.6 Supervision
Supervision +
The Supervision menu lets you congure the supervision of
output voltage, output current and output power. You can also
supervise a step function. The menu Supervision leads
you to following menu selection:
U thresholds
I thresholds
Step response
7.6.1 Voltage supervision
U thresholds +
The menu pageU thresholds lets you congure the over-
voltage threshold OVP) as well as the supervision circuits for
over- and undervoltage.
Overvoltage protection (OVP)
U ovp Default: 1,1*U
nom
= {U>… 1,1*U
nom
}
The overvoltage protection is intended to protect the connected
load. This threshold should always be adjusted to the maximum
voltage the load can take without damage. The output is instantly
shut down if this threshold is exceeded.
Example: a 1000V unit can be adjusted up to 1100V for U
ovp
 OV It is displayed as an alarm.
(also see „6.13. Alarms, warnings and signals“)

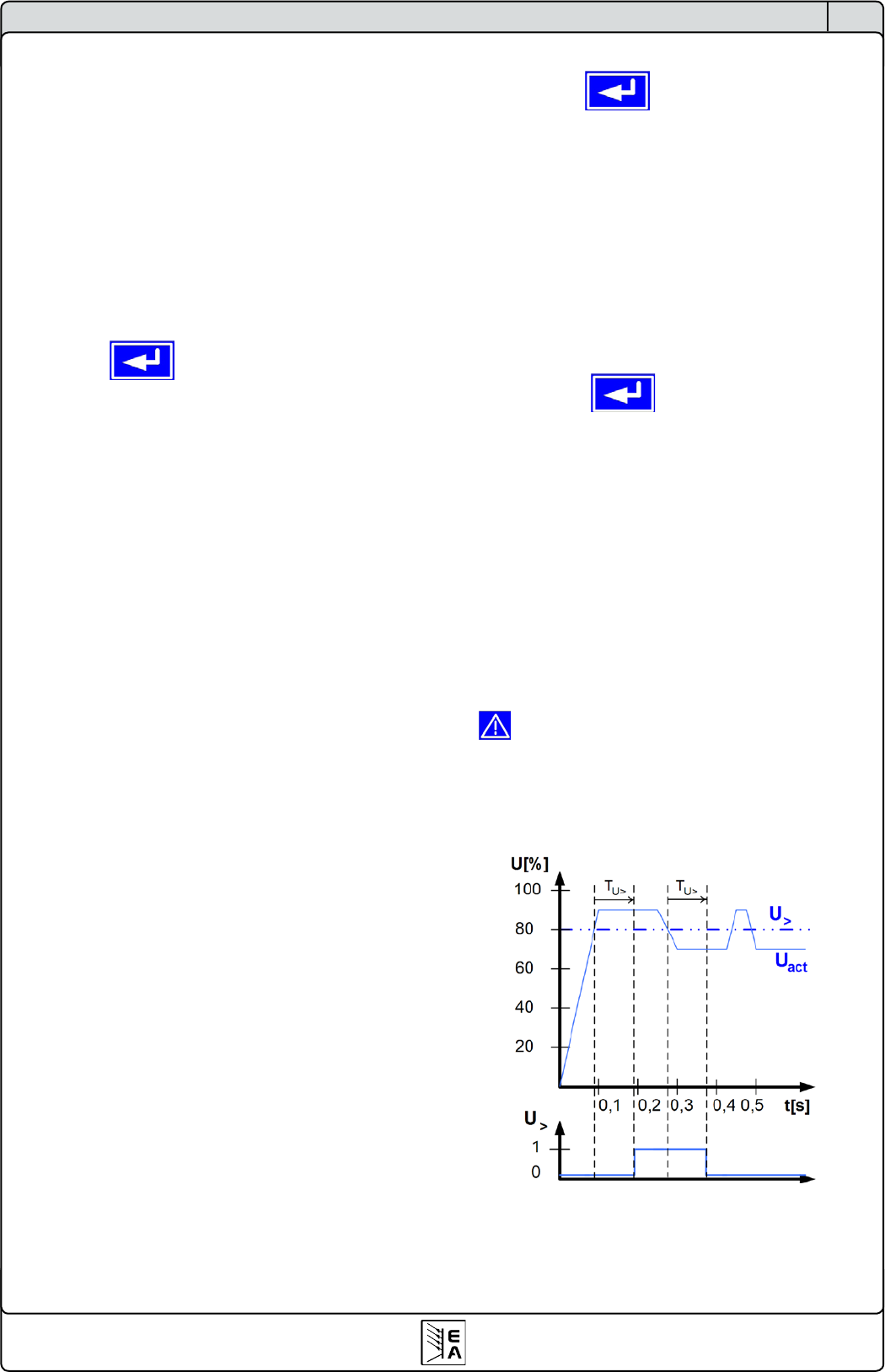

Overvoltage supervision
