Instruction Manual
PSI 8000 3U HS PV Series
Date: 10-28-2011
Using the power supply
7. Device conguration
Part 1: The menu Prole

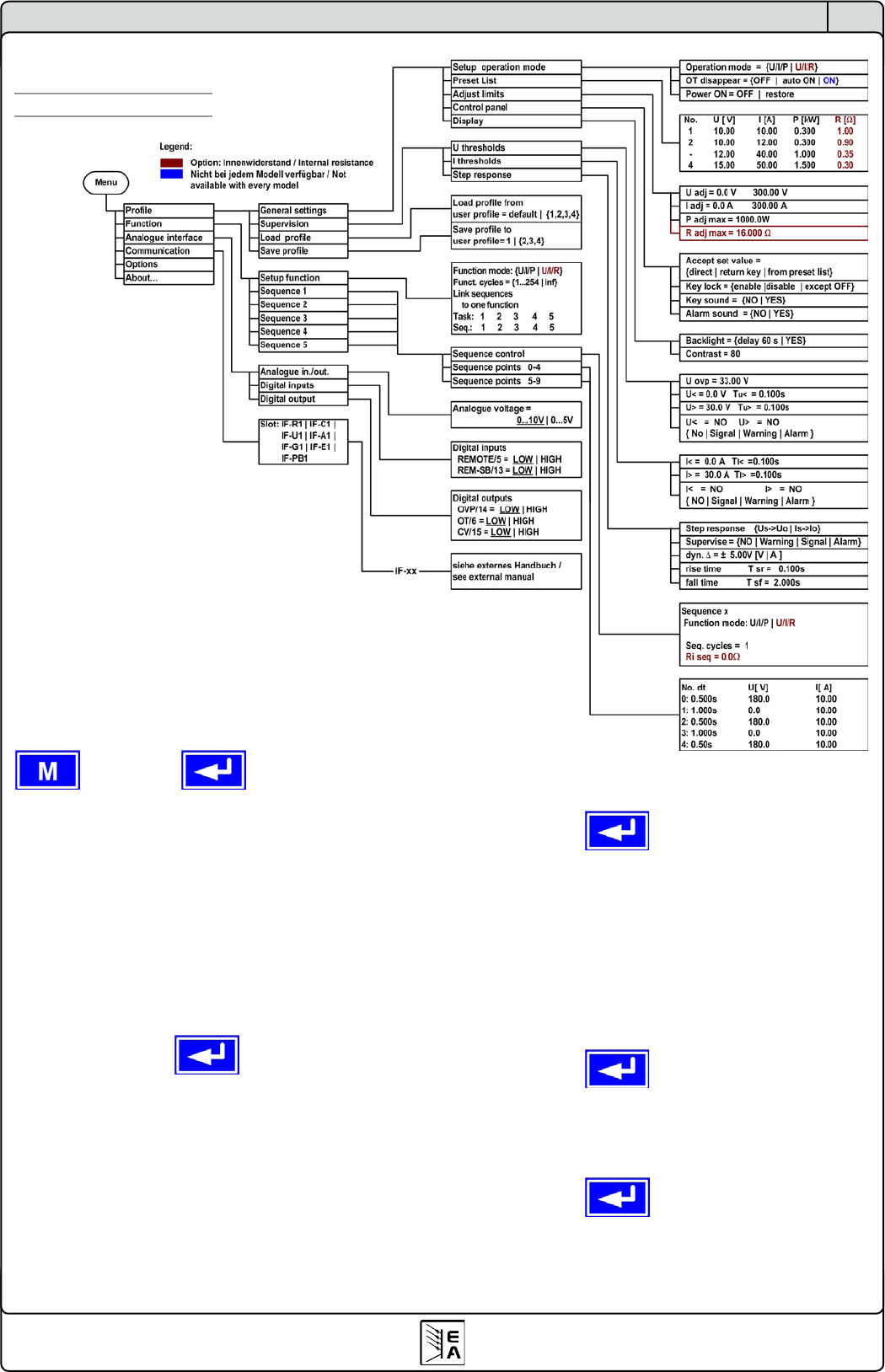

This is an overview of the parameter pages.
Colored menus or parameters may not ap-
pear with every model and can be related to
options..
+Prole +
The proles are intended to minimize to time needed to set up
the device at alternating users or to keep user dened settings
for repeating applications. The last used prole is always loaded
after the unit is switched on.
The menu entry Prole leads you to following selection:
General settings
Supervision
Load prole
Save prole
General settings +
The menu entry General settings leads to following se-
lection where the operation mode, the display itself and the
handling (adjustment) of the unit can be congured:
Setup operation mode
Preset list
Adjust limits
Control panel
Display
Supervision +
The menu entry Supervision leads to following selection
where alarms, warnings and signals, as well as the correspon-
ding supervision limits and reaction times are set up.
U thresholds
I thresholds
Step response
Load prole +
 Load prole from user prole = {default, 1..4}
The current prol is replaced by the selected one.
Save prole +
 Save prole to user prole = {1..4}
The current prole can be stored into one out of four proles.
