FIBERGLASS

SHOWERWALL

INSTALLATION INSTRUCTIONS

DIRECT MOUNTING TO STUDWALLS

IMPORTANT: SEE BACK PAGE FOR SHOWER DOOR (ENCLOSURE) LISTING

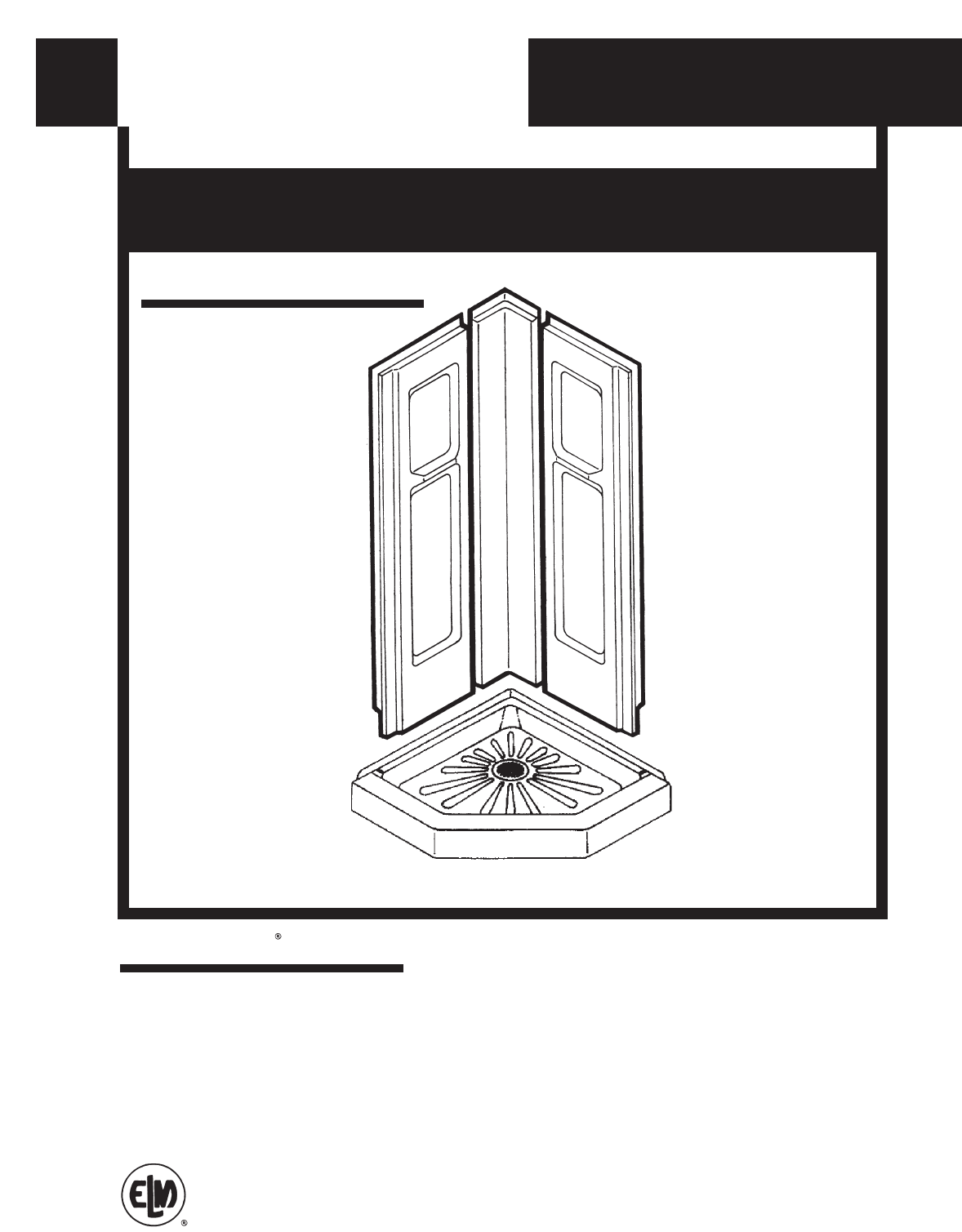

Before you assemble and install your MODEL 738C three-piece Molded Fiberglass Shower Wall

unit, you will have to prepare the rough-in area, determine which side wall will have the shower head

& control valve and if unit will be equipped with a shower door or curtain. Please read

instructions before proceeding with installation. The shower wall unit does not require any trimming

or cutting for normal installations.

Quality Plumbing Products

E.L. MUSTEE & SONS, INC.

5431 West 164th Street • Brook Park, Ohio 44142

SI-162 (06•06)

MMOODDEELL

773388CC

DDUURRAA

WALL

773388CC

MUSTEE

3838C - NEO ANGLE SHOWER RECEPTOR

Summary of content (6 pages)

PAGE 1
MUSTEE FIBERGLASS SHOWERWALL INSTALLATION INSTRUCTIONS MODEL 738C 3838C - NEO ANGLE SHOWER RECEPTOR D U R A WALL IMPORTANT: 738C DIRECT MOUNTING TO STUDWALLS SEE BACK PAGE FOR SHOWER DOOR (ENCLOSURE) LISTING Before you assemble and install your MODEL 738C three-piece Molded Fiberglass Shower Wall unit, you will have to prepare the rough-in area, determine which side wall will have the shower head & control valve and if unit will be equipped with a shower door or curtain.
PAGE 2
TOOLS AND MATERIALS* See back cover page. ROUGH-IN FRAMING After you have determined where your MUSTEE SHOWERWALL is to be located, you will have to construct the appropriate alcove. Be sure to plan your rough plumbing requirements (drain-venting-supply lines) at this time. Refer to “ROUGH-IN” illustrations for dimenstions, Figures A & B. After you have constructed your alcove and completed your rough plumbing requirements you are now ready to install the shower receptor.
PAGE 3
. Place shower receptor directly on sub-floor or slab. Level receptor in both directions. Place level along top edge of tile flanges. Do not use floor area which is tapered for water drainage. HINT: You may want to install shower receptor in a bed of gypsum cement or panel/floor adhesive for additional support. 4. Seal waste by installing drain seal around 2” (inch) waste pipe. Tamp in place to bottom of drain body using a 1/4” (inch) diameter rod. Make FIG.
PAGE 4
Please review the following steps (A thru E) before beginning the permanent MODEL 738C Showerwall Installation. A. One of the Side Panels will require drilling for the mixing/control valve handle(s). The showerhead may be located through the Side Panel or above it (which ever you chose in your rough plumbing). Double check all measurements before you do any drilling. The drilling should be completed before the unit is installed. Drill from the finished (inside) surface. B.
PAGE 5
SHOWERWALL INSTALLATION Trial fit the Corner Panel and both right and left Side Panels in place before applying any adhesive or mounting screws. Be sure to check alignment of the front edges of the Side Panels with the front surface of the shower receptor threshold as shown in drawing Fig. G. If any gap is present between the backside of the mounting flange and the face of the stud, a tapered piece of wood (shingle) should be inserted to take up the space.
PAGE 6
MUSTEE MODEL FIBERGLASS SHOWERWALL 738C ACCESSORIES (OPTIONAL) 38” NEO ANGLE ENCLOSURE (use with 3838C SHOWER RECEPTOR) PN–38.750 – SILVER FINISH, OBSCURE GLASS PN–38.770 – GOLD FINISH, OBSCURE GLASS PN–38.760 – SILVER FINISH, HORIZONTAL STRIPE/GLASS PN–38.780 – GOLD FINISH, HORIZONTAL STRIPE/GLASS TRIM KIT PN–700.301 – SILVER FINISH PN–700.
