T-28 Trojan Manual

EN
To register your product online, visit www.e-fl iterc.com

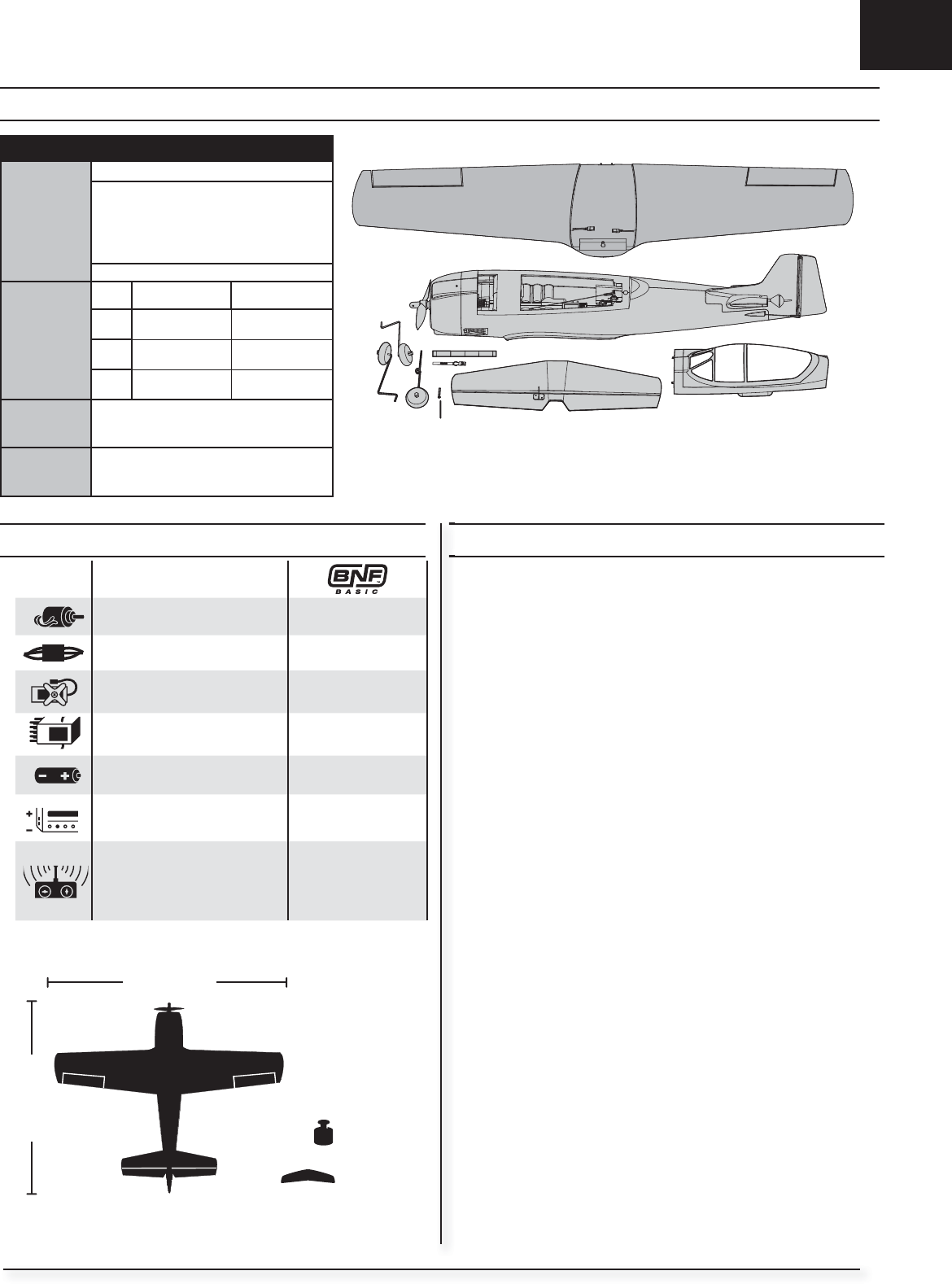

Box Contents
Quick Start Information
Transmitter
Setup
Blank (Acro) Model
Servo Reversing:
Rudder: Reverse
Elevator: Normal
Aileron: Reverse
DO NOT Reverse Throttle
Travel Adjust ( All Surfaces): 100%
Dual Rates
Hi Rate Low Rate
Ail
S=13mm
T=13mm
S=9.5mm
T=9.5mm
Ele
S=16mm
T=16mm
S=13mm
T=13mm
Rud
X=22mm
W=22mm
X=16mm
W=16mm
Center of
Gravity (CG)
63.5mm back from leading
edge at the root.
Flight Timer
Setting
5-7 minutes
Table of Contents
30 oz
(875 g)
36 in (915mm)
44 in (1120mm)
Specifi cations
Motor: 480 BL Outrunner; 960Kv Installed
ESC: 30A Pro SB Brushless ESC Installed
Servo: (4) Installed
Receiver: Spektrum
™
AR610
6-Channel Sport Receiver
Installed
Recommended Battery: 11.1V 3S
1800-2200mAh Li-Po
Required to
Complete
Recommended Battery Charger:
3-cell Li-Po battery balancing
charger
Required to
Complete
Recommended Transmitter:
Full-Range 6 channel (or more)
2.4GHz with Spektrum
™
DSM2
®
/DSMX
®
technology with
adjustable Dual Rates.
Required to
Complete
T
T
314.0 Sq In
(20.3 Sq Dm)
Prefl ight ..........................................................................................4
Model Assembly .............................................................................4
Control Horn and Servo Arm Settings ..............................................6
Transmitter and Receiver Binding ....................................................7
Battery Installation and ESC Arming ................................................8
Center of Gravity (CG) ....................................................................8
Control Direction Test ......................................................................9
Flying Tips and Repairs .................................................................10
Post Flight ....................................................................................10
Motor Service ...............................................................................11
Nose Gear Service ........................................................................11
Troubleshooting Guide ..................................................................12
AMA National Model Aircraft Safety Code ......................................13
Limited Warranty ..........................................................................14
Contact Information ......................................................................15
FCC Information ............................................................................15
IC Information ...............................................................................15
Compliance Information for the European Union ............................15
Replacement Parts ........................................................................55
Optional Parts ...............................................................................55
3 X 25mm
3
