Always use threadlock on metal-to-metal fasteners
to prevent them from vibrating loose.

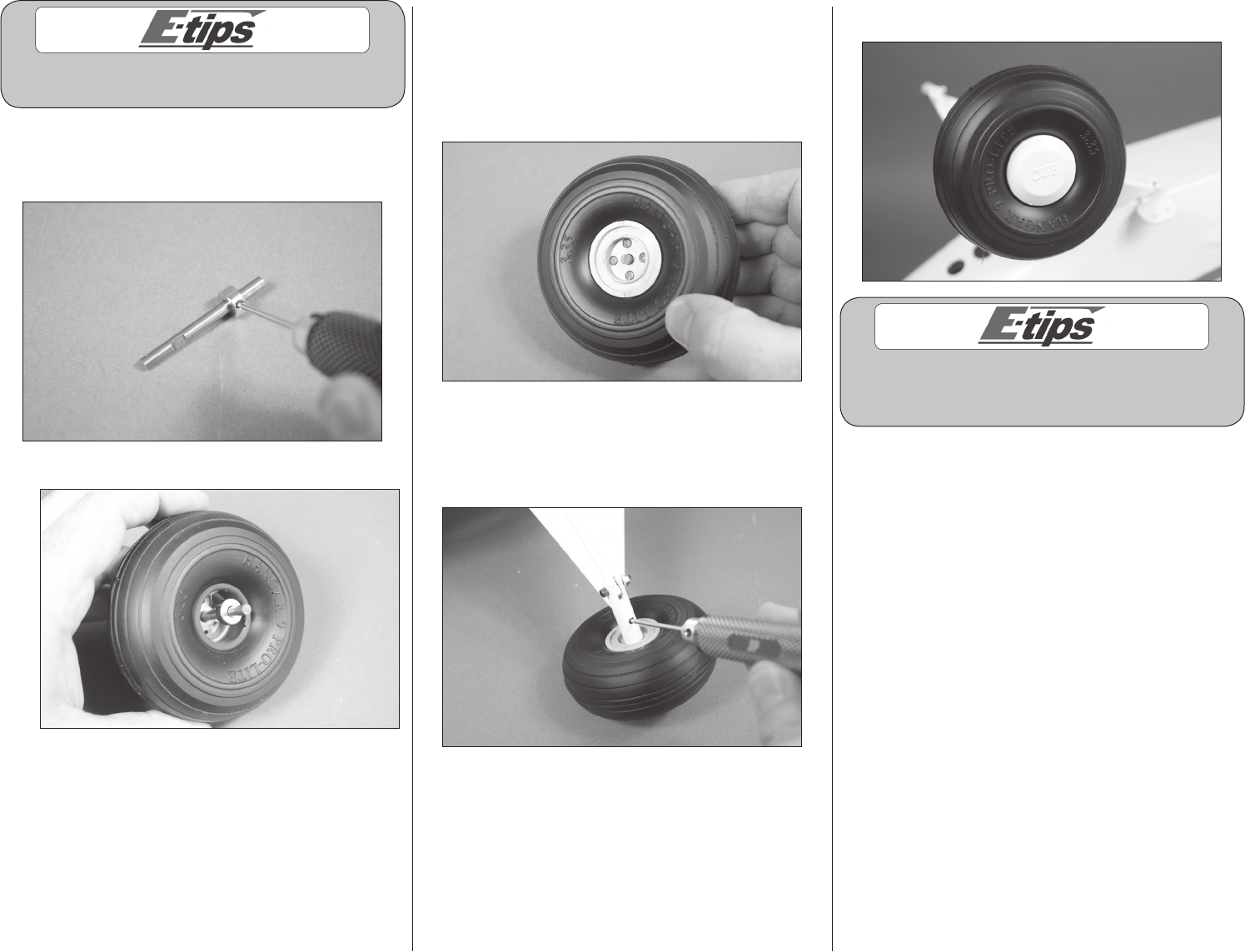

 7. Use a 1.5mm hex wrench to tighten the setscrew
securing the 5/32-inch wheel collar to the flat on
one end of the axle.
 8. Slide the axle through the inner hub in the wheel.
The inner hub is the one without the holes for
the screws to pass through.
 9. Press the outer hub into the tire, aligning the
holes in the outer hub with those in the inner hub.
Use a #1 Phillips screwdriver to install the four 2mm
x 15mm self-tapping screws that secure the hubs
together. Use care in positioning the hubs so the
screws are threaded into the holes in the inner hub.
 10. Slide the axle into the landing gear. Use a
5/64-inch hex wrench to tighten a 6/32-inch
setscrew onto the flat on the axle. Make sure the
wheel can rotate freely on the axle.
 11. Snap the hub cap on the wheel as shown.
Use a permanent marker to carefully
color the embossed Cub text on the
hub cap for further scale effect.
 12. Repeat steps 6 through 11 to install the
remaining axle and wheel.
