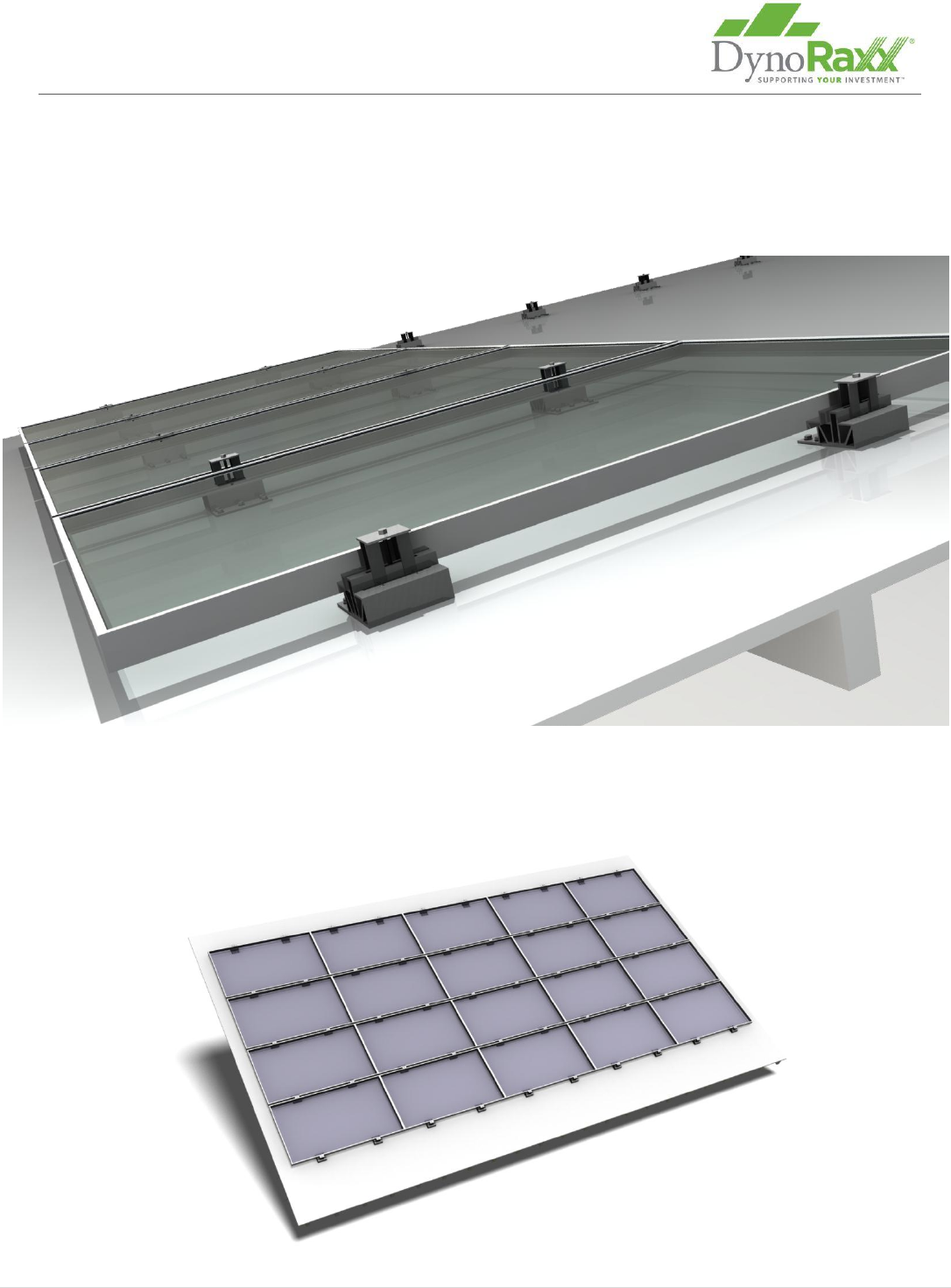

Step 9: When the end of the column has been reached, attach the last set of Evolution PR bases by positioning
the deck screw holes under the last module. Attaching the butyl mastic tape to the roof, fasten the last row of Evolution
PRs in position, and secure the solar panel under the clamps. Screw down any remaining clamps, insuring that the
modules are properly installed. Reversing the position of the deck screws will give a more aesthetically pleasing
installation.
Step 10: Repeat steps 5-9 for the consequent columns, by attaching new sets of Evolution PRs, solar panels and securing
them in place.
