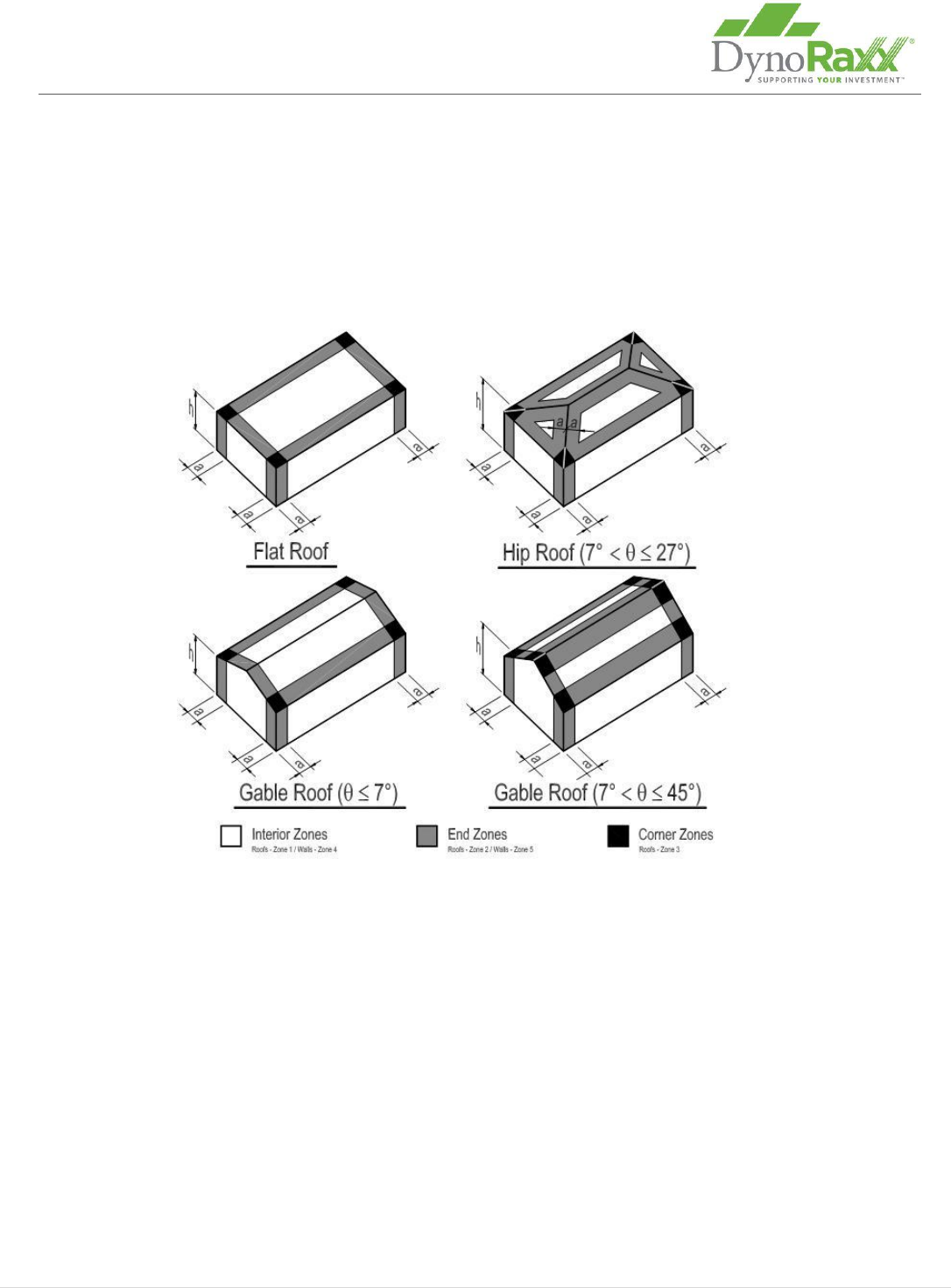

Task 7: (Continued) In the figure shown below, identify the location of the installation site, and determine the
angle of the roof. Then choose the appropriate zone as per the specifications. The zoning is determined as
follows:
 Interior Zones are Zone 1/Walls are Zone 4
 End Zones are Zone 2/Walls are Zone 5
 Corner Zones are Zone 3
Taken from ASCE 7-05, figure 6-3 p. 41
