Air Brake and EEC Kit Installation Guide for 200i/250i and 200iP/250iP Motorcycle Dynamometers
AIR BRAKE AND EEC KIT
Air Brake
4
4 Remove the six 1/4-20 x 5/8-inch pan head screws securing the right side drum
cover to the dyno and set aside.
5 Remove the two 1/4-20 x 5/8-inch pan head screws securing the top of the right
side drum cover to the dyno and set aside.
6 Remove the right side drum cover.

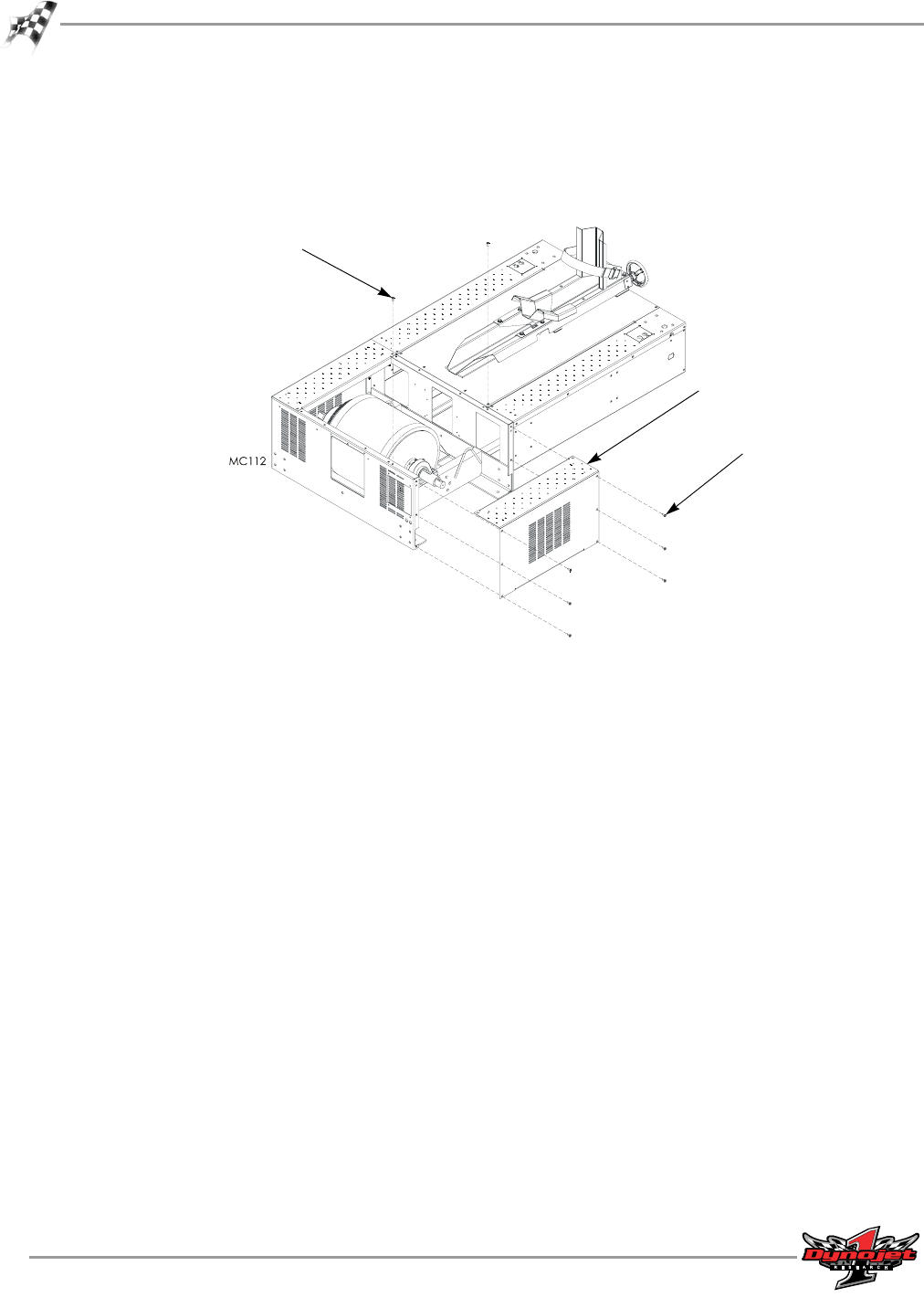

Figure 2: Removing the Right Side Drum Cover
top screw
side screw
right side drum cover
