Air Brake and EEC Kit Installation Guide for 200i/250i and 200iP/250iP Motorcycle Dynamometers
AIR BRAKE AND EEC KIT
EEC Finger Guards—200iP/250iP
28
ADJUSTING THE EEC FINGER GUARDS
Once the pit cover plates are installed and adjusted, the EEC finger guards will need
to be adjusted.
1 Loosen the 1/4-20 x 5/8-inch pan head screws and adjust the EEC finger guards so
they are 0.16 cm to 0.64 cm (.0625 in. to .25 in.) from the drum. Tighten the
screws.
2 Check the EEC finger guards regularly to verify the clearance has not changed.
Do not operate the dynamometer without the EEC finger guards properly
installed. The gap between the finger guards and the drum must be less than
0.64 centimeters (0.25 inches).

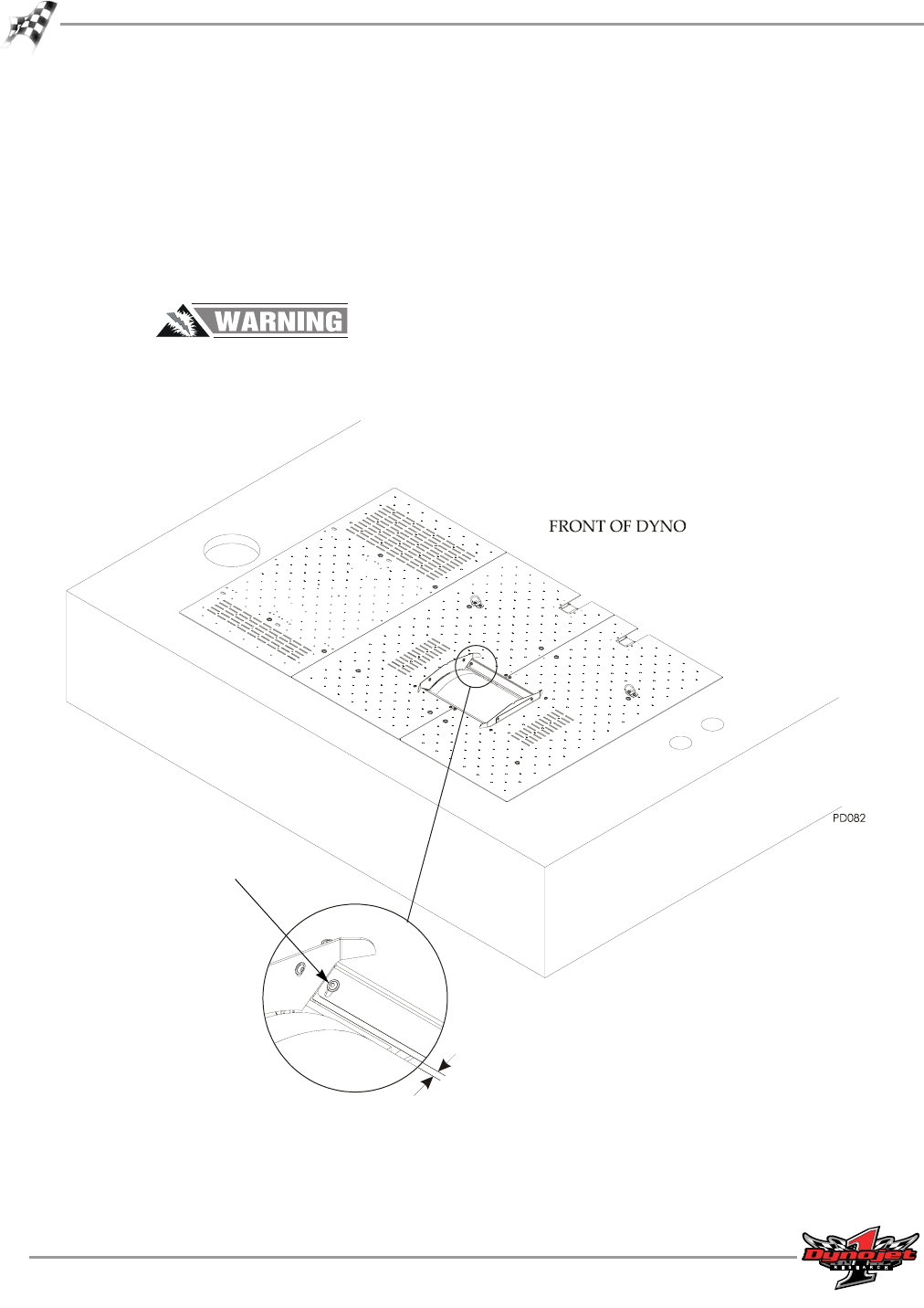

Figure 28: Adjusting the EEC Finger Guard Clearance
adjust screw
adjust clearance
