Model 248 Automotive Dynamometer Illustrated Parts List
10
Proportional Air Brake—Cables and Wires
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

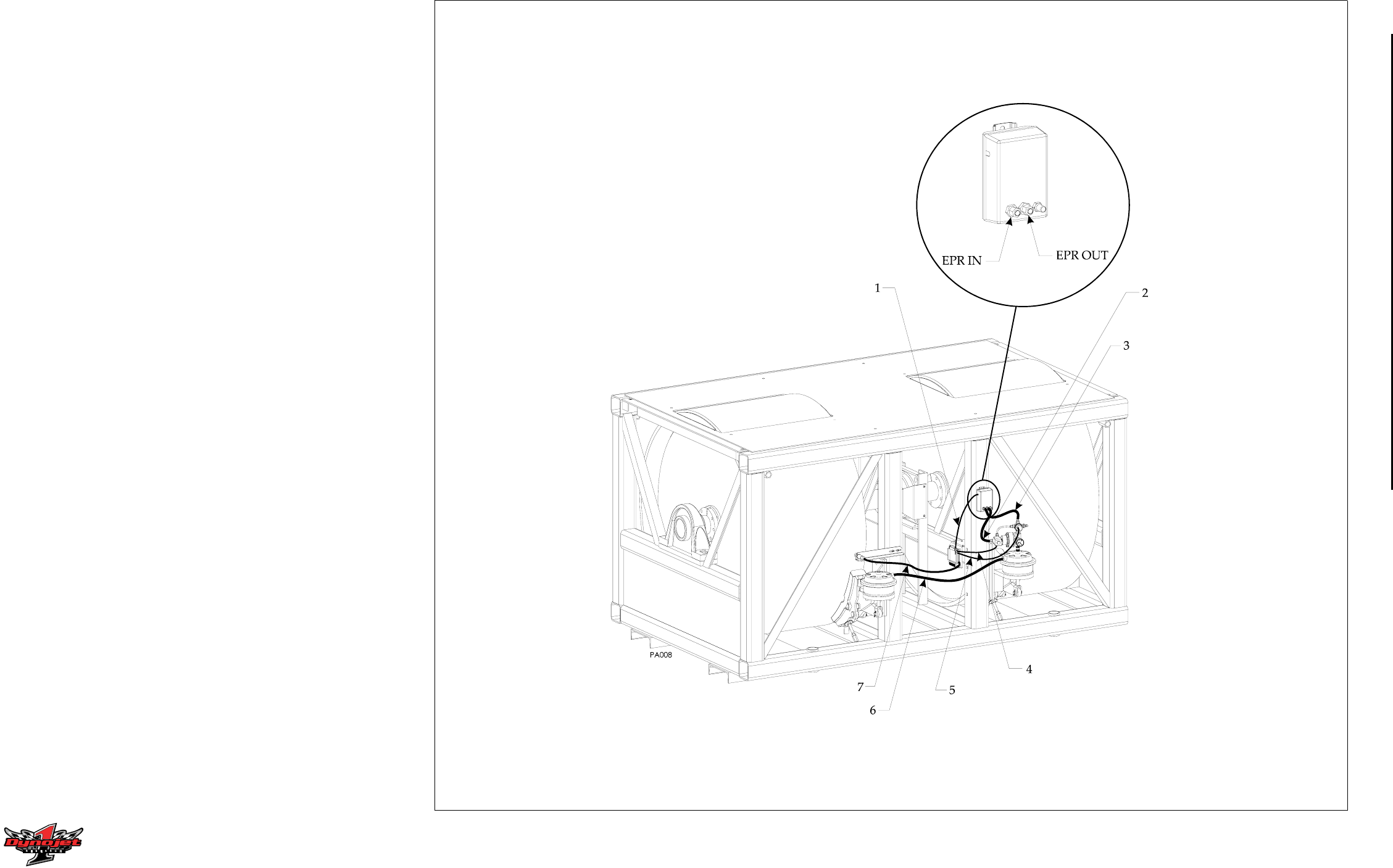

PROPORTIONAL AIR BRAKE—CABLES AND WIRES
1 66914001 WIRE HARNESS, BUZZMATIC (EPR)
2 11108700 TUBING, 1/4", NYLON BLACK (EPR OUT)
3 11108700 TUBING, 1/4", NYLON BLACK (EPR IN)
4 BRAKE SOLENOID WIRES (PART OF 24310201, VALVE)
5 66912001 WIRE HARNESS, AIR PRESSURE SWITCH
6 021120501 HOSE, 3/8", LENGTH 27"
7 49950030 TEMPERATURE SENSOR AND CABLE
