Model 248 Automotive Dynamometer Illustrated Parts List
6
Standard Air Brake—Air Brake Control Switch
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

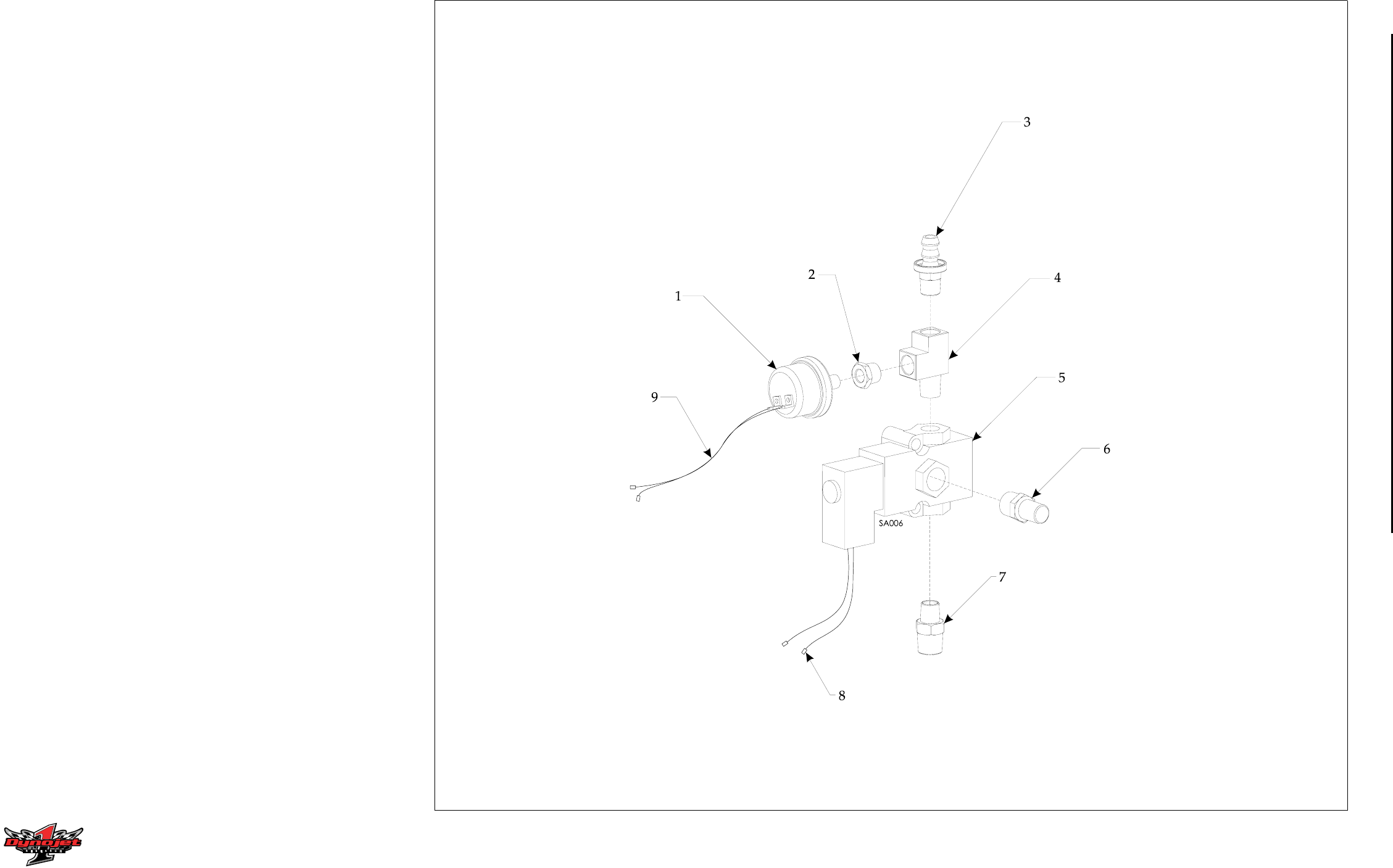

STANDARD AIR BRAKE—AIR BRAKE CONTROL SWITCH
64111003 Brake Solenoid Sub-Assembly
(Air Brake Control Switch)
1 145750001 SWITCH, PRESSURE, 1/8NPT/40PSI
2 141821201 BUSHING
3 141900001 FITTING, 10006B-104
4 141622201 STREET TEE
5 24310201 VALVE, 55B-21-PI-550CAAD
6 145000001 MUFFLER P38
7 34141323 REDUCER, NIPPLE, 3/8" X 1/4"
8 44997102 FERRULES, 18 AWG YELLOW (2)
9 66912001 WIRE HARNESS, PRESSURE SWITCH
