Model 248 Automotive Dynamometer Illustrated Parts List
5
Standard Air Brake
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

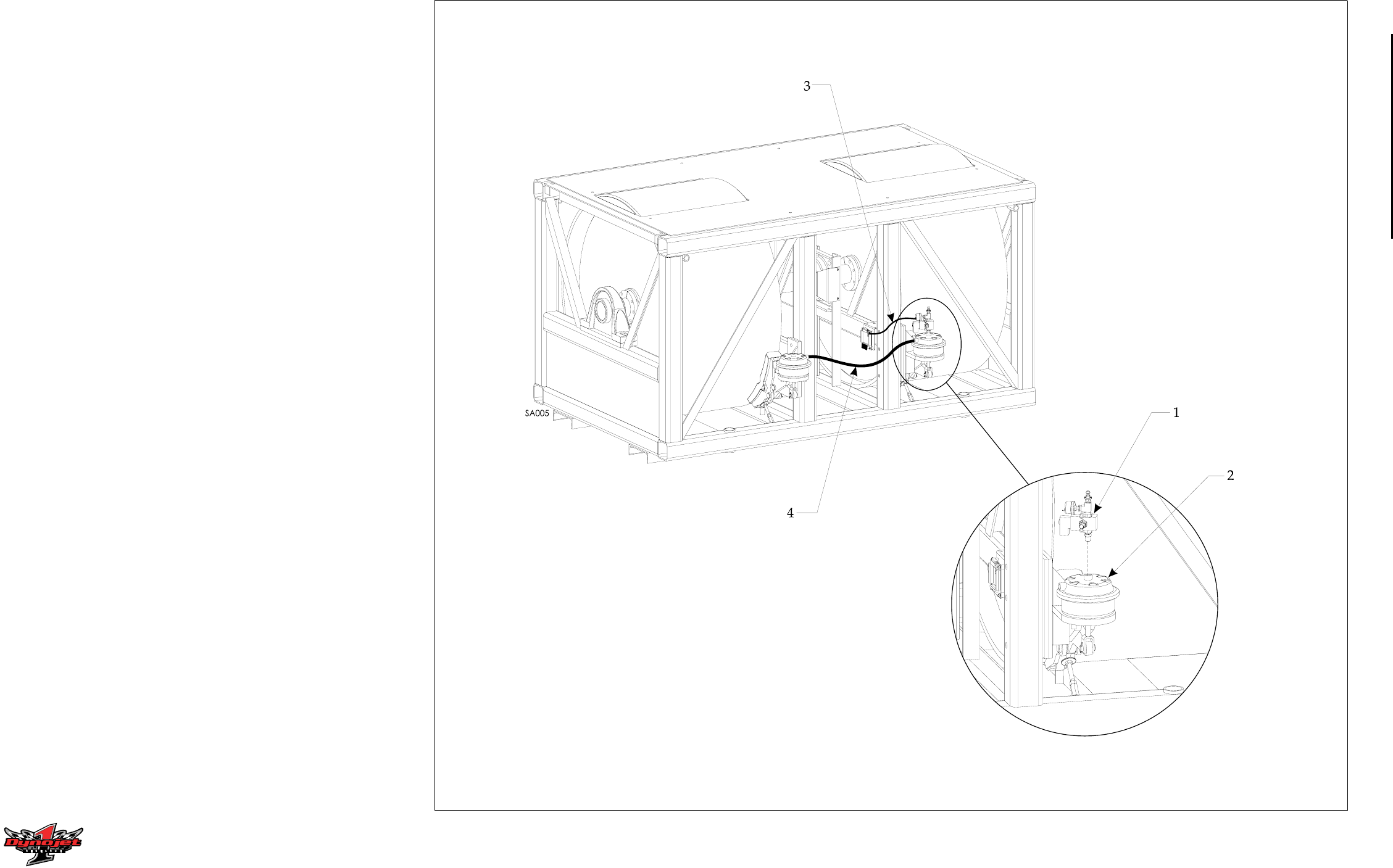

STANDARD AIR BRAKE
1 64111003 BRAKE SOLENOID SUB-ASSEMBLY (AIR BRAKE
CONTROL SWITCH) REFER TO PAGE 6
2 C2003A BRAKE ASSEMBLY
REFER TO PAGE 7
3 66912001 WIRE HARNESS, PRESSURE SWITCH
4 021120501 HOSE, 3/8", LENGTH 27"
