Model 248 Automotive Dynamometer Illustrated Parts List
4

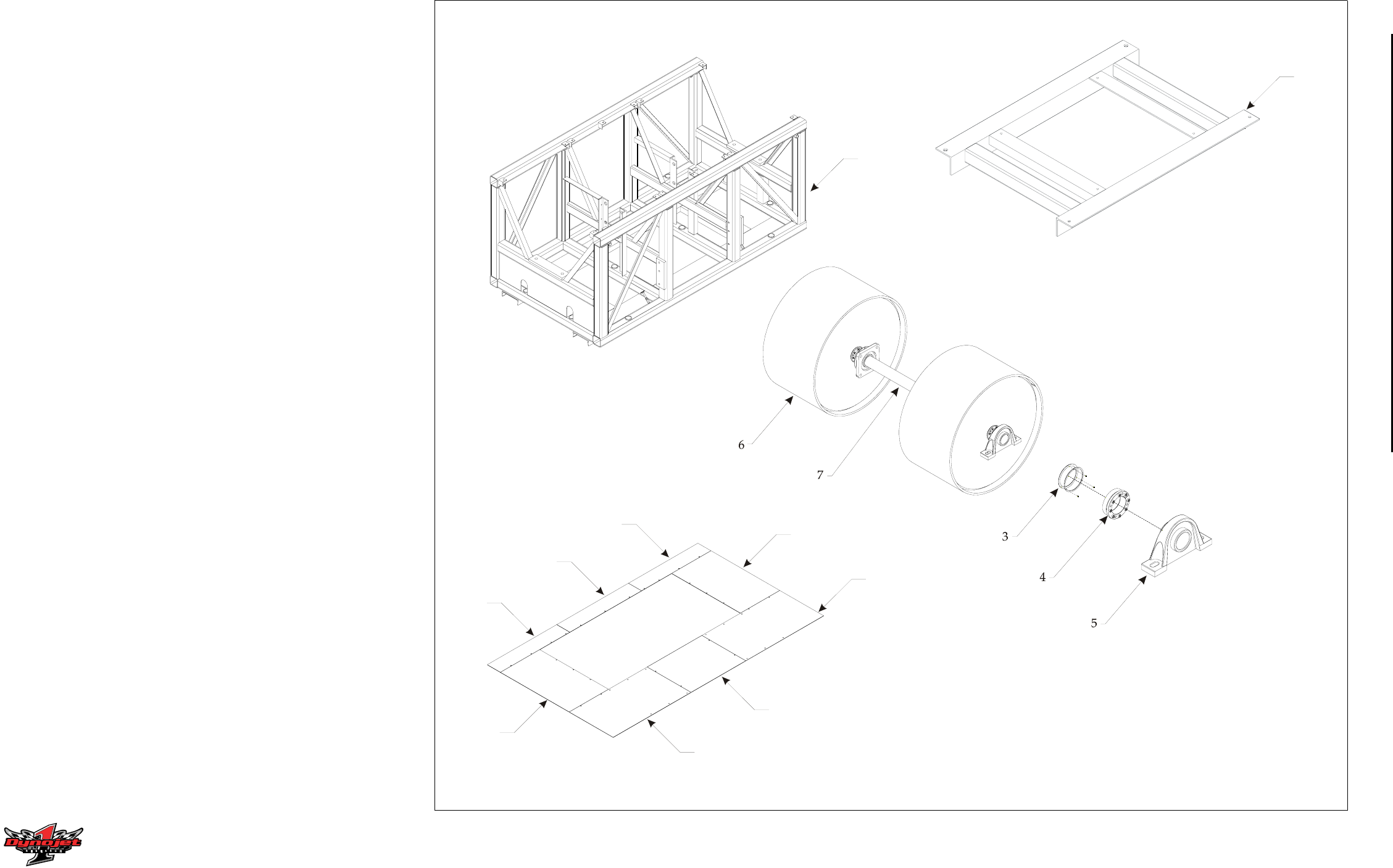

248HW Heavy Wide Generic Car Dyno
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
248HW HEAVY WIDE GENERIC CAR DYNO
81148400 248HW Heavy Wide Generic Car Dyno uses:
1 61116810 FRAME, 248HW-102 DYNO
2 61116180 H-FRAME ASSEMBLY, 248HW (2)
3 72213001 SPACER ASSEMBLY, B-LOK, HS-DRUM (4)
4 32410820 COLLAR, B-LOCK, 3-15/16" (4)
5 VPS363 BROWNING BEARING (2)
VF4S-363 FLANGE BEARING (2)
6 29270007 MOD-248 HI-SPEED TO HW DRUM, KNURL (2)
7 22139990 SHAFT, HW-DYNO
71116180 248 Heavy Wide Pit Cover Assembly, 248HW-102
8 21219504 COVER, LEFT PIT NON-BRK SIDE, 248HW
9 21219505 COVER, RIGHT PIT NON-BRK SIDE, 248HW
10 21219506 COVER, CENTER PIT NON-BRK SIDE, 248HW
11 21219507 COVER, CENTER PIT BRK SIDE, 248HW
12 61119180 COVER ASSEMBLY PIT SIDE, 248HW (2)
13 61119181 COVER ASSEMBLY LEFT PIT, BRK SIDE, 248HW
14 61119182 COVER ASSEMBLY RIGHT PIT, BRK SIDE, 248HW
1
AD156
2
AD157
1
4
AD158
12
9
10
8
13
11
12
