6/6/2006

OUNTING THE

BKM1

IKE

PEED

ONITOR ON TO A

ICYCLE

RAME

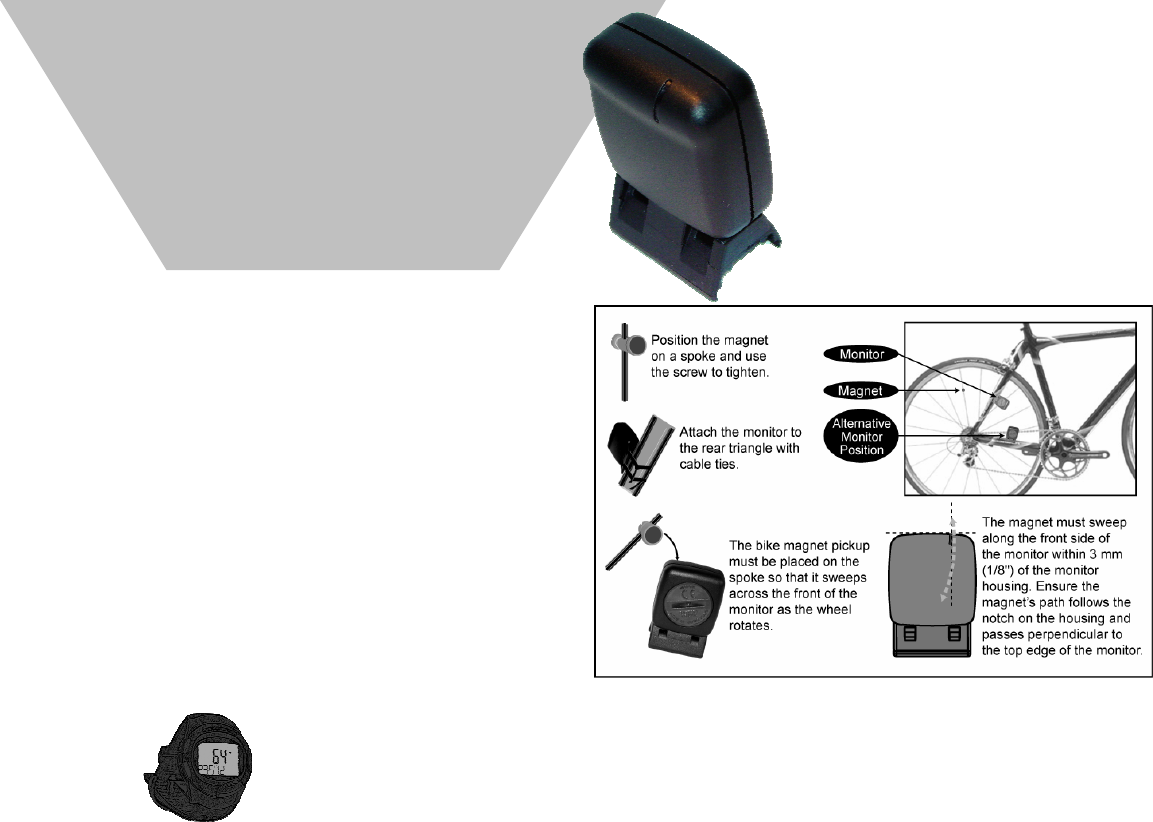

The BKM1 Bike Speed Monitor mounts easily

onto the rear triangle of a bike frame. Position

the magnet on a spoke at the same level as the

monitor.

• Attach both pieces securely. Any sliding

motion will affect accuracy.

• The bike magnet should sweep within 3 mm

of the front of the monitor housing on a path

perpendicular to the top edge of the monitor.

Any misalignment will affect accuracy.

AIRING THE

BKM1

IKE

PEED

ONITOR

WITH A

PORTS

ONITORING

ATCH

The BKM1 Bike Speed Monitor must “pair” with an ANT-enabled sports monitoring watch in order to

display performance data to the user. To pair your monitor:

• Bring the BKM1 Bike Speed Monitor within 10-30 inches (25-75 cm) of the sports monitoring watch.

• Ensure that you are standing at least 72 inches (183 cm) away from any other ANT-enabled bike

speed monitor. You can be in proximity to other ANT-enabled devices.

• After the BKM1 Bike Speed Monitor pairs with the sports monitoring watch, the bike icon appears on

the watch’s LCD display.

PECIFICATIONS

Size (max dimensions): 31 x 29 x 14 mm

Weight: 14 g

Power: Single user-replaceable CR-2032 battery

Battery life: 5 years assuming use of 1 hr/day at 20°C

Storage temp: -20°C to +70°C

Operating temp: -10°C to +50°C

User-interface: Auto on/off

RF frequency/protocol: 2.4 GHz / Dynastream ANT transmit protocol

Communication range: > 3 m (receiver dependent)

Regulatory compliance: FCC, IC, and CE ready

BKM1 Wireless

Bike Speed

Monitor

Summary of content (3 pages)

PAGE 1
BKM1 Wireless Bike Speed Monitor MOUNTING THE BKM1 BIKE SPEED MONITOR ON TO A BICYCLE FRAME The BKM1 Bike Speed Monitor mounts easily onto the rear triangle of a bike frame. Position the magnet on a spoke at the same level as the monitor. • Attach both pieces securely. Any sliding motion will affect accuracy. • The bike magnet should sweep within 3 mm of the front of the monitor housing on a path perpendicular to the top edge of the monitor. Any misalignment will affect accuracy.
PAGE 2
FCC Compliance NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
PAGE 3
Warranty Information VENDOR Warranty: LIMITED WARRANTY This VENDOR product is warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, VENDOR will at its sole option, repair or replace any components that fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts or labor, provided that the customer shall be responsible for any transportation cost.
