User manual

Converter.

Converter

DCE

Node

DCE

CBL-V35-M34M/M34M-X-D Customer DTE Cable

This cable is for the clients who have the need of cross end connection cable. Please

specify the length of cable when ordering.

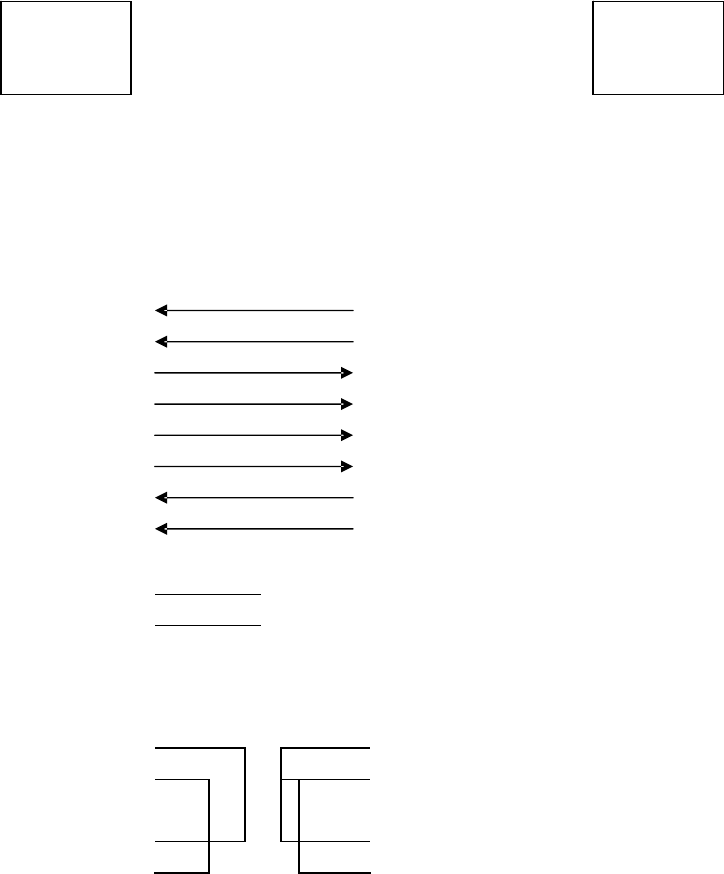

The making method is as follow:

The two ends of the cable is both M34 pin male interface

Name of signal Pin number Pin number Name of signal

TD(A) P R RD(A)

TD(B) S T RD(B)

RD(A) R P TD(A)

RD(B) T S TD(B)

RCLK(A) V U SCTE(A)

RCLK(B) X W SCTE(B)

SCTE(A)

U V RCLK(A)

SCTE(B)

W X RCLK(B)

SGND

GND B BGND

TCLK(A) Y No connection Y TCLK(A)

TCLK(B)

AA No connection AA TCLK(B)

DCD F F DCD

DSR E E DSR

CTS D D CTS

RTS

CCRTS

DTR

H H DTR

The other pins are not connected.

Requirement: the material of cable is equal to or better than 80

°C

30V
