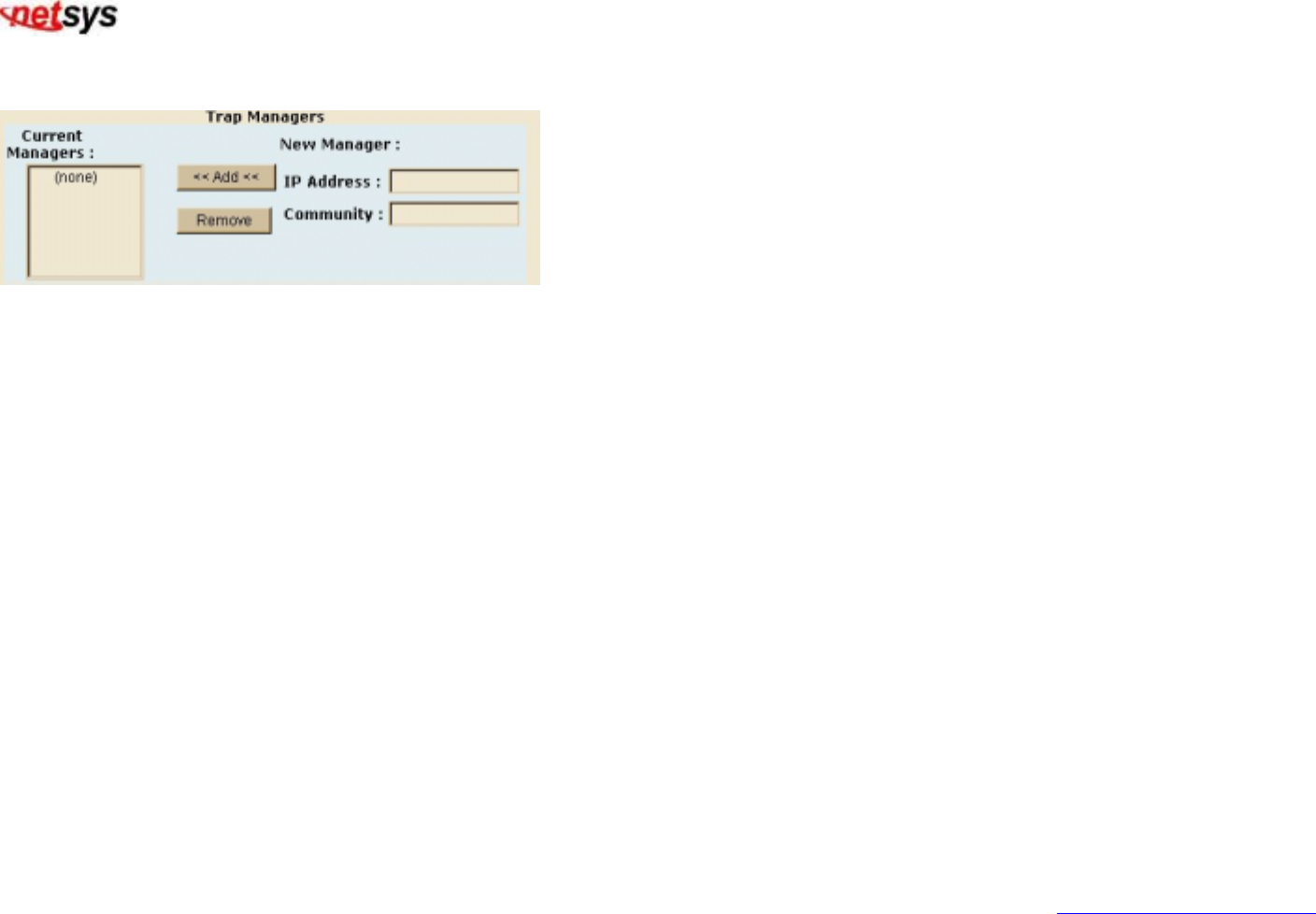

3. Trap Manager
A trap manager is a management station that receives traps, the system alerts generated by the NVF-800S. If no trap
manager is defined, no traps are issued. Create a trap manager by entering the IP address of the station and a community
string.
Enterprise MIB contains two traps:
a. When IP DSLAM internal temperature is greater than 70℃, system will send a “Temperature alarm “ trap.
b. When the IP DSLAM’s internal cooling FAN doesn’t run, the system will send a “FAN speed alarm” trap.
4.2.2-4-11 SNR
The following information provides a view of the current VDSL Attenuation value of the unit.
SNR(Signal to Noise Ratio)
