4.2.2-4-8. Spanning Tree

The Spanning-Tree Protocol (STP) is a standardized method (IEEE 802.1D ) for avoiding loops in NVF-800S networks.

When STP enabled, to ensure that only one path at a time is active between any two nodes on the network.

You can enable Spanning-Tree Protocol on web management’s NVF-800S setting advanced item, select enable

Spanning-Tree protocol. We are recommended that you enable STP on all NVF-800S ensures a single active path on the

network.

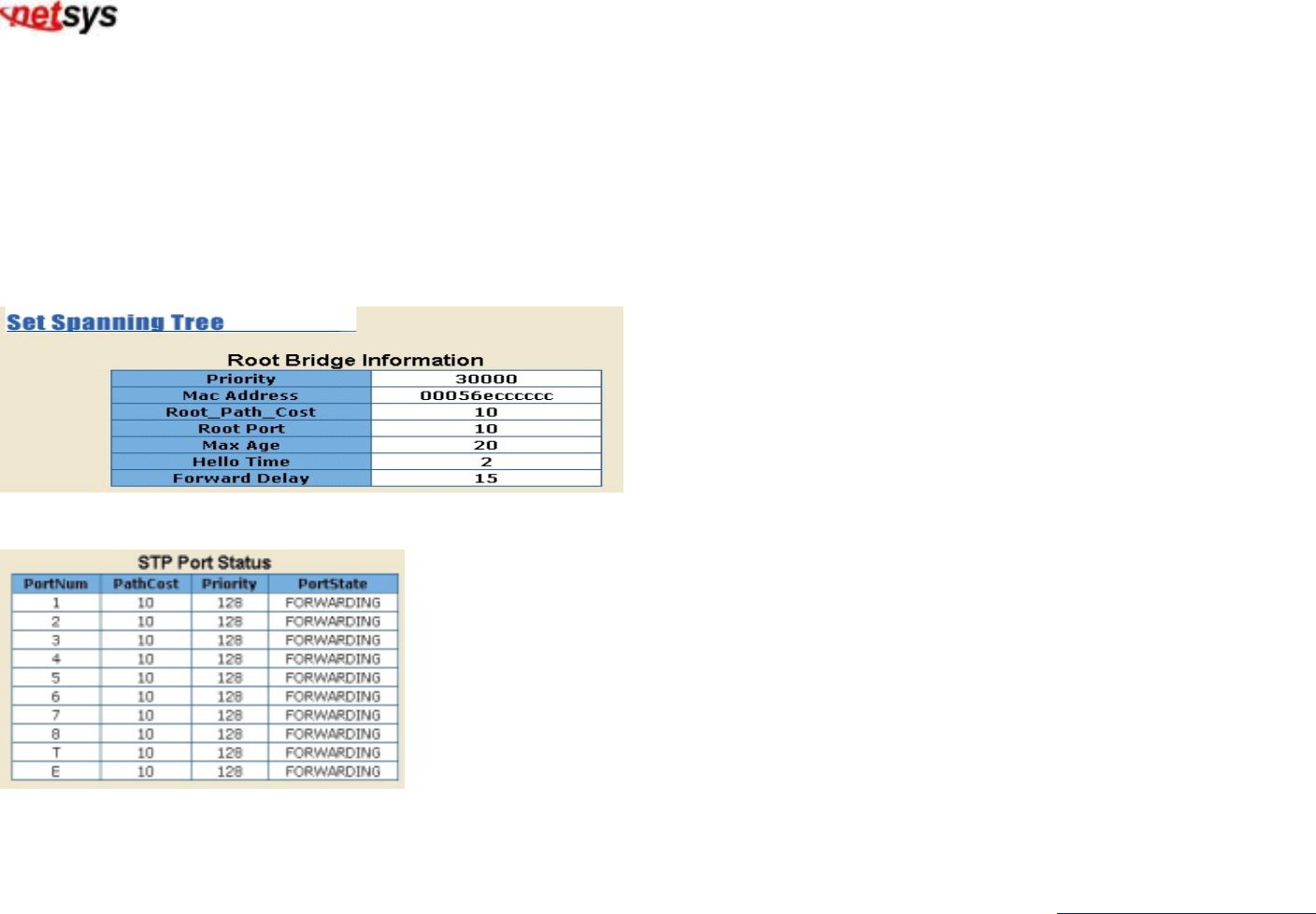

1. You can view spanning tree information about the Root bridge as following screen:

2. You can view the spanning tree status about the NVF-800S as following screen.
