2-4-6-2. Static MAC Address
When you add a static MAC address, it remains in the NVF-800S' address table, regardless of whether the device is
physically connected to the NVF-800S. This saves the NVF-800S from having to re-learn a device's MAC address when the
disconnected or powered-off device is active on the network again.
1. To add a static MAC address
2. From the main menu, click administrator, then click Filter Database.

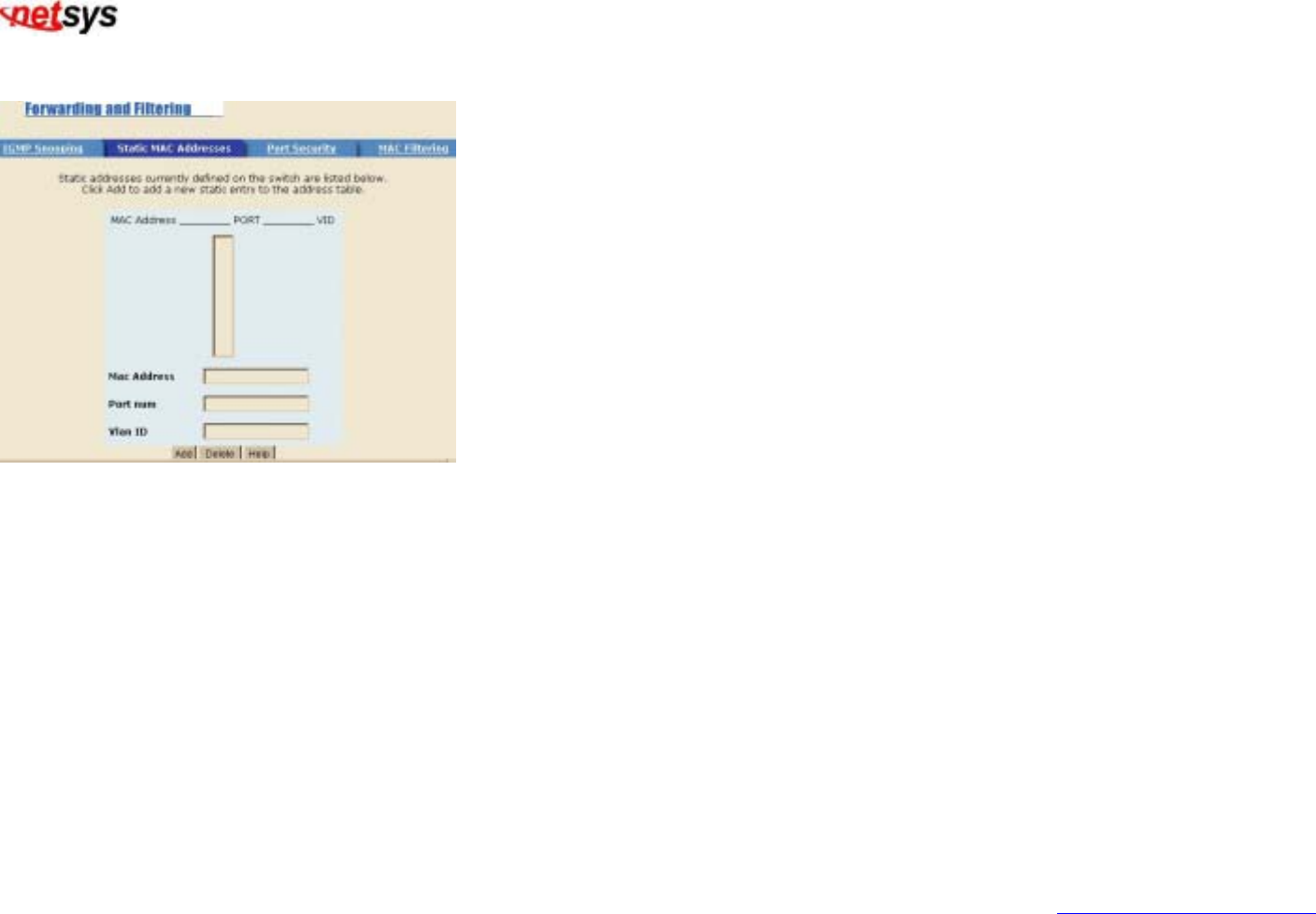

3. Click Static MAC Addresses. In the MAC address box, enter the MAC address to and from which the port should
permanently forward traffic, regardless of the device's network activity.
4. In the Port Number box, select a port number.
5. If tag-based (IEEE 802.1Q) VLANs are set up on the NVF-800S, static addresses are associated with individual VLANs.
Type the VID (tag-based VLANs) to associate with the MAC address.
6. Click “add”
