2.LACP: If enable, the group is LACP static trunking group. If disable, the group is local static trunking group. All ports
support LACP dynamic trunking group. If connecting to the device that also supports LACP, the LACP dynamic
trunking group will be created automatically.
3. Work ports: The max number of ports can be aggregated at the same time. If LACP static trunking group, the exceed
ports is standby and able to aggregate if work ports fail. If local static trunking group, the number must be
the same as group ports.
4. Select the ports to join the trunking group
5. If LACP enable, you can configure LACP Active/Passive status in each ports
6. Click Apply.
2-4-5-2. Aggregator Information

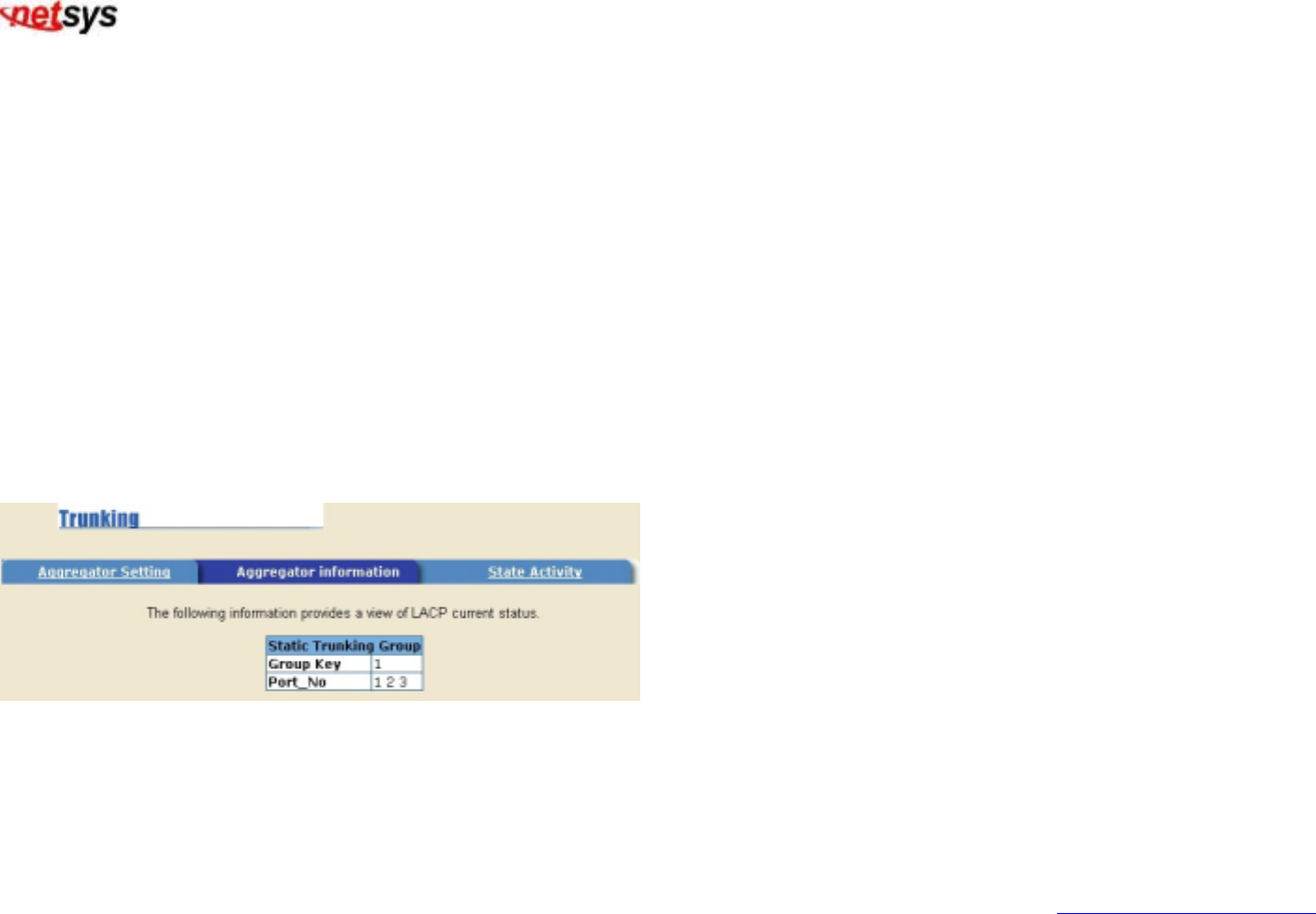

When you are setting LACP aggregator, you can see relation information in here.
This page is Actor and Partner trunking one group with port 1 to port 1.
2-4-5-3. State Activity
