2-4-2-2.Advanceed

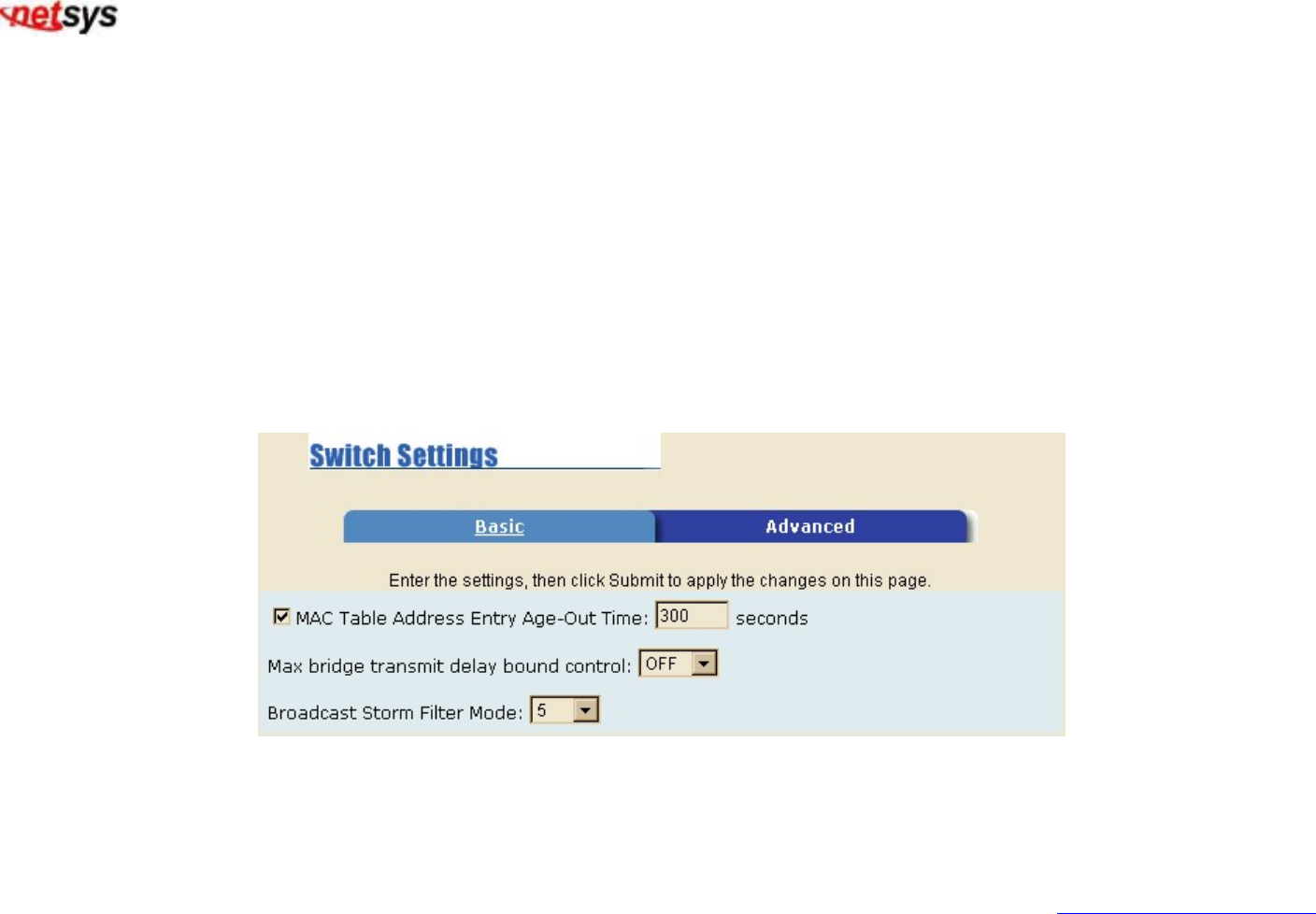

Miscellaneous Setting:
MAC Address Age-out Time: Type the number of seconds that an inactive MAC address remains in the NVF-800S'
address table. The valid range is 300~765 seconds. Default is 300 seconds.
Max bridge transit delay bound control: Limit the packets queuing time in NVF-800S. If enable, the packets queued
exceed will be drop. This valid value are 1sec, 2 sec, 4 sec and off. Default is 2
seconds.
Broadcast Storm Filter: To configure broadcast storm control, enable it and set the upper threshold for individual ports.
The threshold is the percentage of the port's total bandwidth used by broadcast traffic. When
broadcast traffic for a port rises above the threshold you set, broadcast storm control becomes
active. The valid threshold value are 5%, 10%, 15%, 20%, 25% and off.
