4.2.2-1. Web Management Home Overview

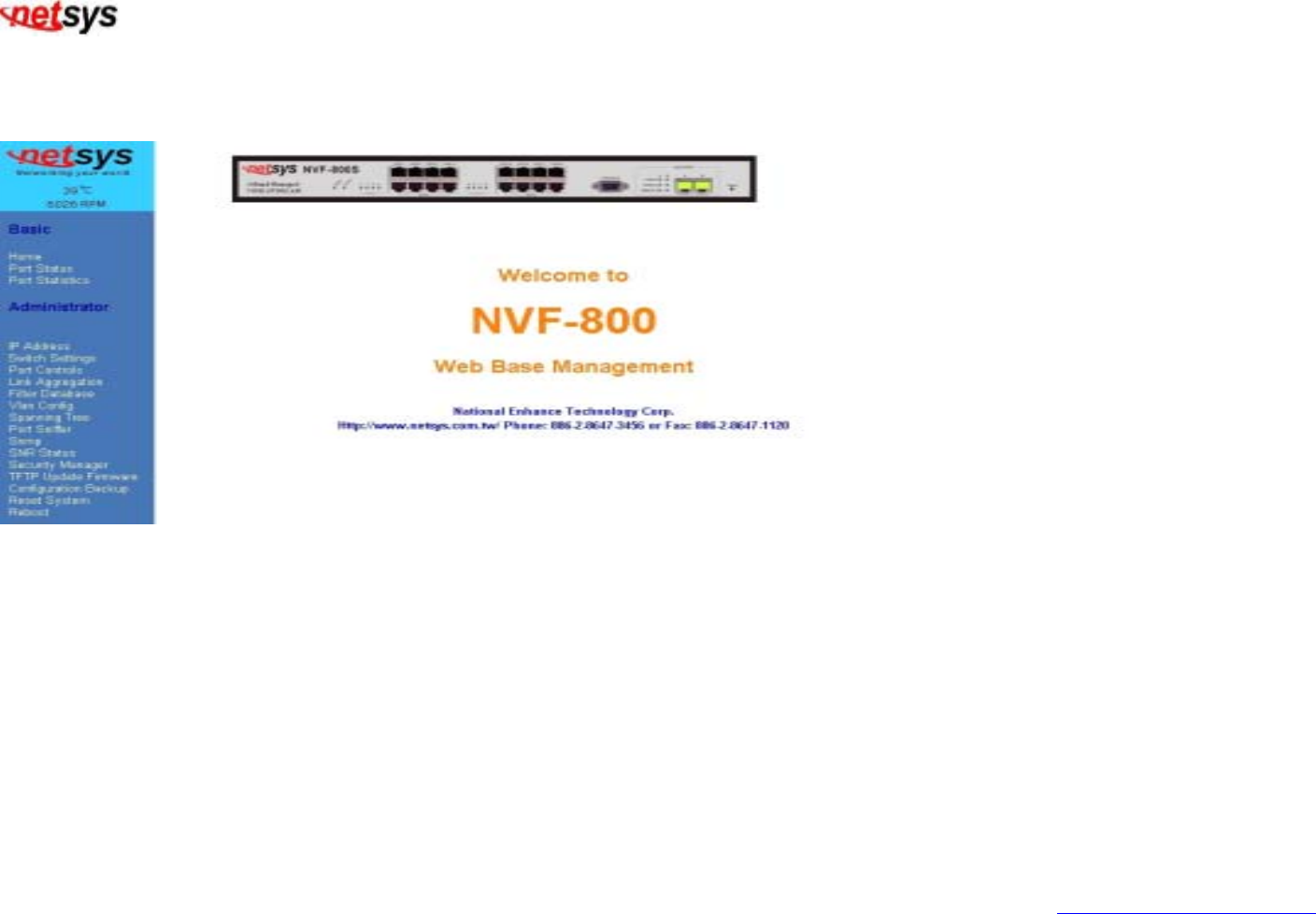

This is VDSL Home Page.
4.2.2-2. Port status
1. This page can see every port status
State: Display port status disable or enable, disable is unlink port, enable is link port.
Link Status: Down is “No Link”, UP is “Link”
Auto Negotiation: NVF-800S auto negotiation mode
Speed status: Port 9、10 are 10/100/1000Mbps or and Port 1- 8 are 5/15/25Mbps,
Configure: Display the state of user setup,
Actual: Display the negotiation result.
Duplex status: Display full-duplex or half-duplex mode.
