2. General Description
Hardware Description
This section describes the important parts of the IP DSLAM. It features the front and rear panel drawings showing the
LED, connectors, and NVF-800S.
Front Panel
The following figure shows the front panel.

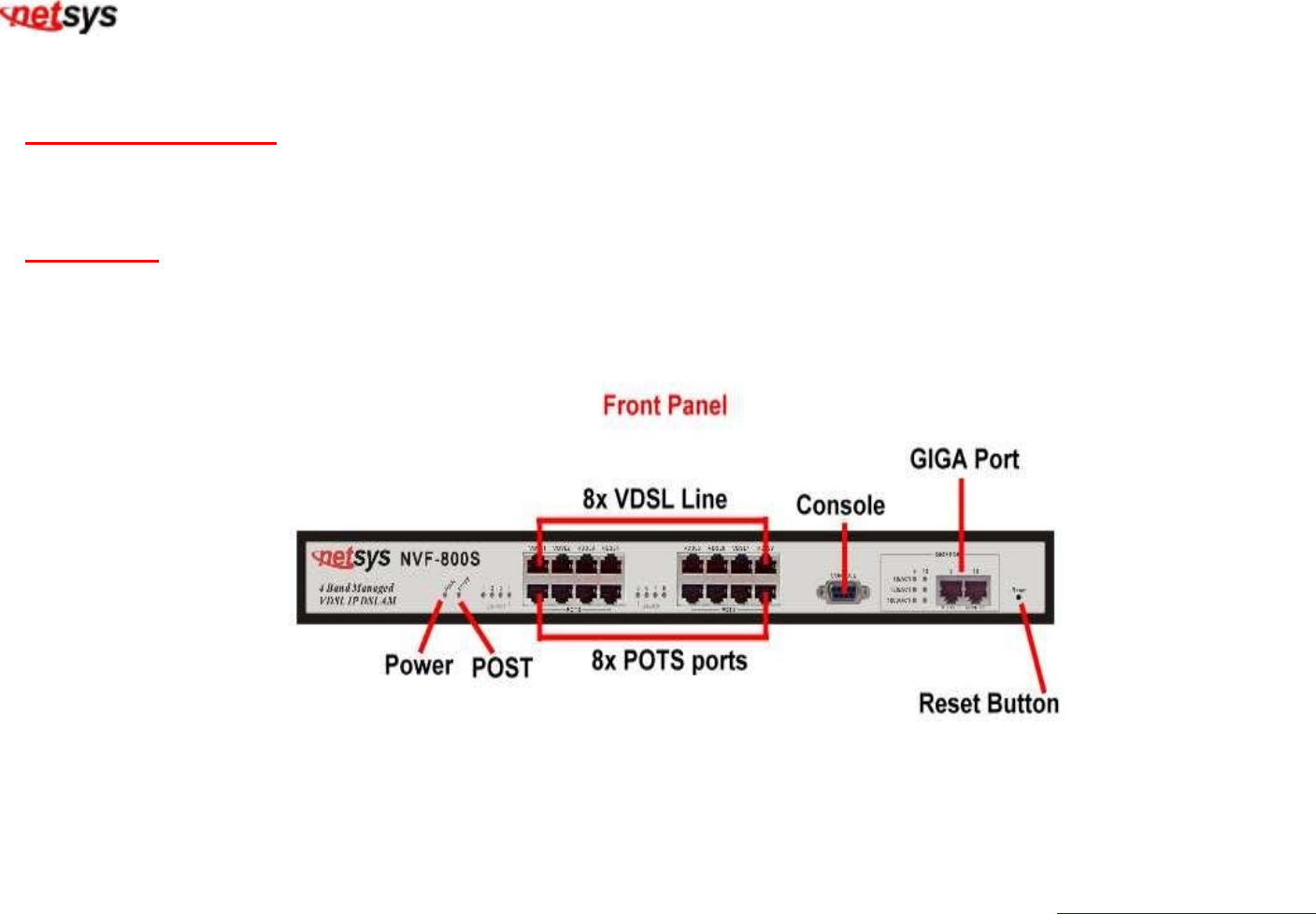

Figure Chapter 2.1 Front Panel description
