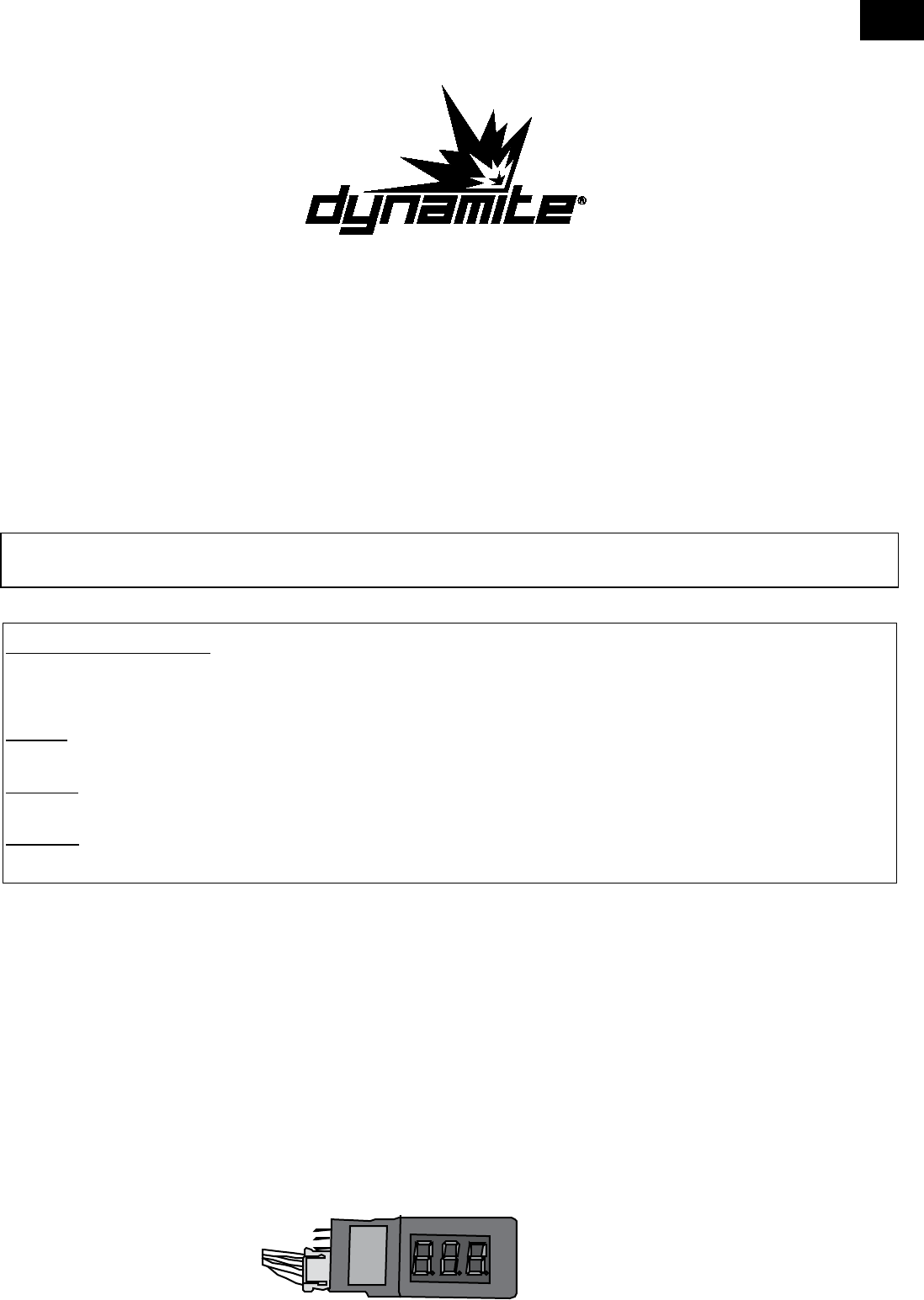

Li-Po Cell Voltage Checker

Li-Po Cell Voltage Checker Features:

• Identify the performance of each cell in a Li-Po pack by reading the voltage draw

• Checks and displays the voltage of each cell up to 6S, then the overall pack

• Large LED Digital display

• Test voltage range: 6V - 26V

• Accuracy up to +/- 0.05V

The minimum safe voltage is 3.0V per cell. A Li-Po pack should not be charged if one or more cells have been over-discharged

and are below the minimum safe voltage. Please refer to instructions provided with your battery, balancer or charger for cell

voltage imbalance recommendations and guidelines.

Meaning of Special Language:

The following terms are used throughout the product literature to indicate various levels of potential harm when operating

this power supply:

NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND a little or no possibility

of injury.

CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility

of serious injury.

WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage,

and serious injury OR create a high probability of superficial injury.

NOTICE: This is a sophisticated hobby product and NOT a toy. It must be operated with caution and common sense and requires

some basic mechanical ability. Failure to operate this Product in a safe and responsible manner could result in injury or damage to

the Product or other property. This Product is not intended for use by children without direct adult supervision. This Product manual

contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in this

manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or injury.

Operating Instructions:

1. The correct connection method is to align the negative wire (black) on the balance connector with the first pin (bottom)

on your voltage checker which is marked as the negative (-) side on the label identified as pin location #1.

2. Connect the Li-Po Cell Voltage Checker to your Li-Po battery by plugging the balance connector on your battery to the voltage

checker. The LED will briefly display ‘DSP’, which indicates voltage is being detected.

3. The LED digital display will first indicate each individual cell voltage beginning with 1 and displays up to 6S. After each

individual cell voltage is displayed, a combined total voltage ‘ALL’ is displayed. NOTE: If the battery is defective,

the voltage checker may not detect any voltage.

NOTICE: All instructions, warranties, and other collateral documents are subject to change at the sole discretion of Horizon

Hobby, Inc. For up to date product literature, visit http://www.horizonhobby.com
