ADSL Router User Manual
Connecting the ADSL Router

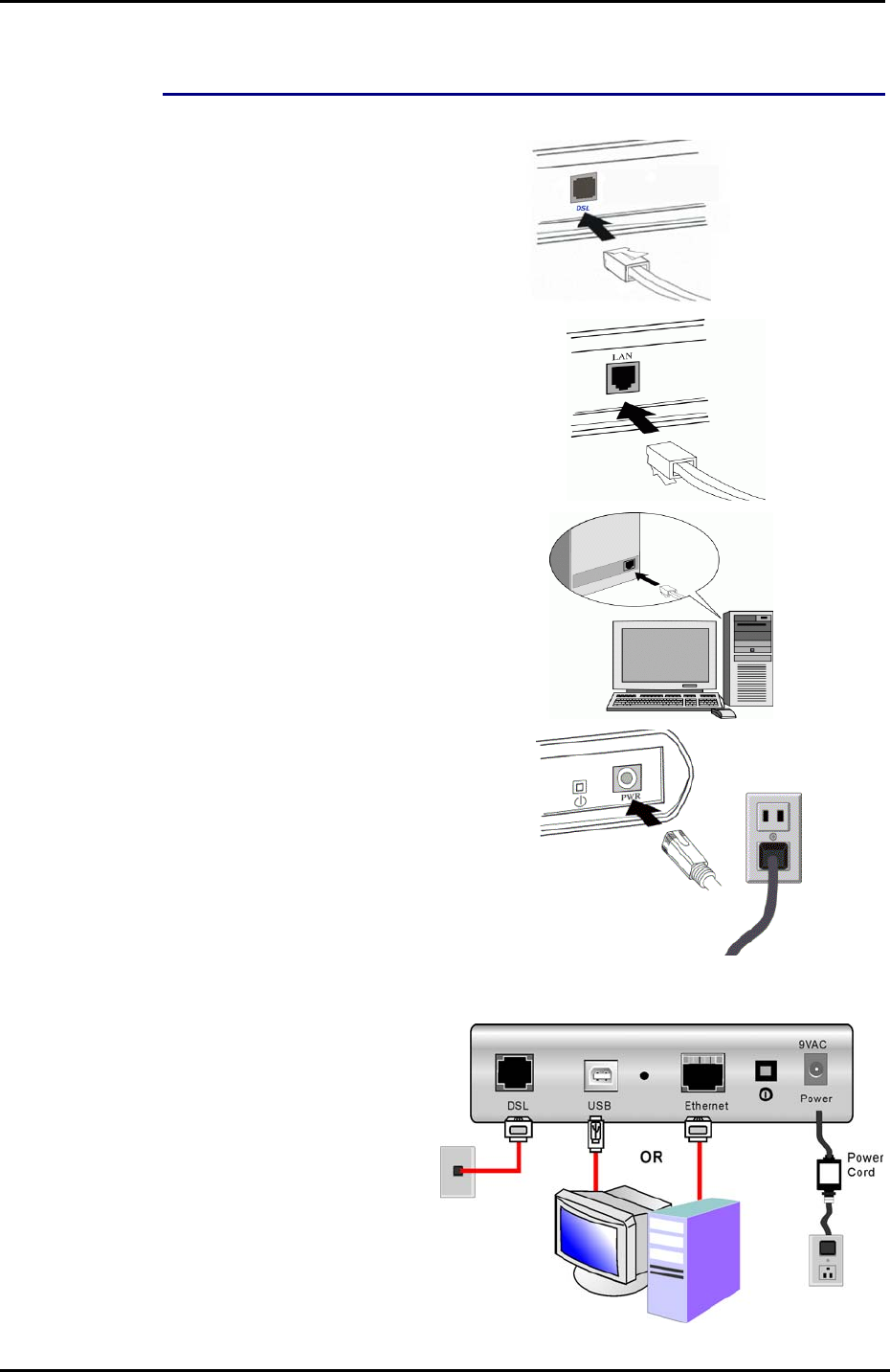

Follow the steps below to connect the related devices.
n Use a RJ-11 cable
(standard telephone cord)
to connect the DSL port of
the router to the DSL wall
outlet.
o Please attach one end of
the Ethernet cable with
RJ-45 connector to the
LAN port of your ADSL
Router.
p Connect the other end of
the cable to the Ethernet
port of the client PC.
q Connect the supplied
power adapter to the
PWR port of your ADSL
Router, and plug the other
end to a power outlet.
r Turn on the power switch.
Here is an example for
hardware connection.
