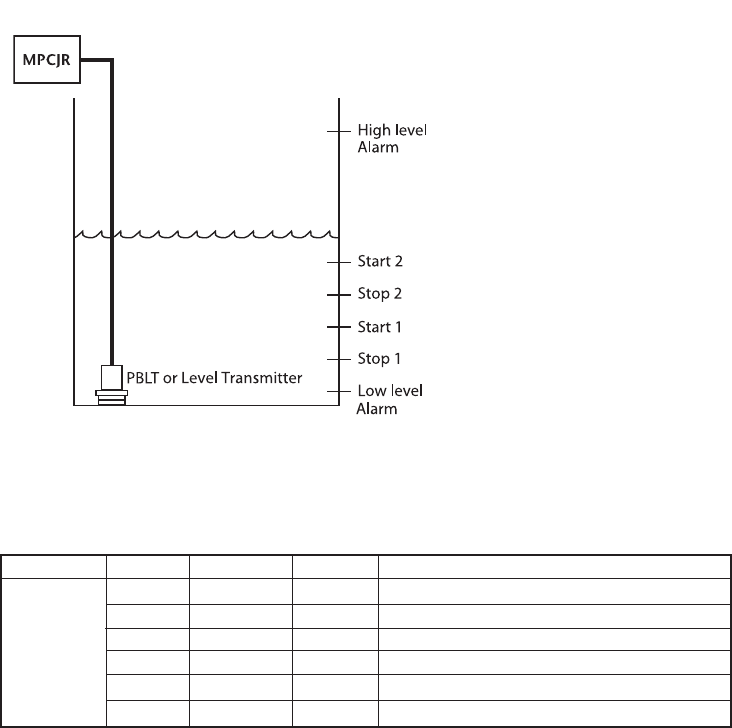

Example:
• Keep Empty, two pump
(duplex)
• Depth 25 feet
• Pump 1: Start at 6 feet
Stop at 3 feet
Pump 2: Start at 12 feet
Stop at 9 feet
• Low level alarm: 1 foot,
fixed, auto reset
• High level alarm: 20 feet,
fixed, auto reset
• Want Lead/Lag function on
• No communication options
• Want 4-20 mA
retransmission
• Using with a 4-20 mA input.
PROGRAMMIMG EXAMPLE
EXAMPLE PROGRAMMING CHART
MENU
Secondary
ITEM
SPIH
SPIL
SP2H
SP2L
A1Hi
A2Lo
DEFAULT
23.1
-5.7
23.1
-5.7
23.1
2.0
SET AT
6.0
3.0
12.0
9.0
20.0
1.0
DESCRIPTION
Set Point 1 value (default is in feet)
Set Point 1 off value (default is in feet)
Set Point 2 value (default is in feet)
Set Point 2 off value (default is in feet)
Alarm 1 (high) value (default is in feet)
Alarm 2 (low) value (default is in feet)
