29

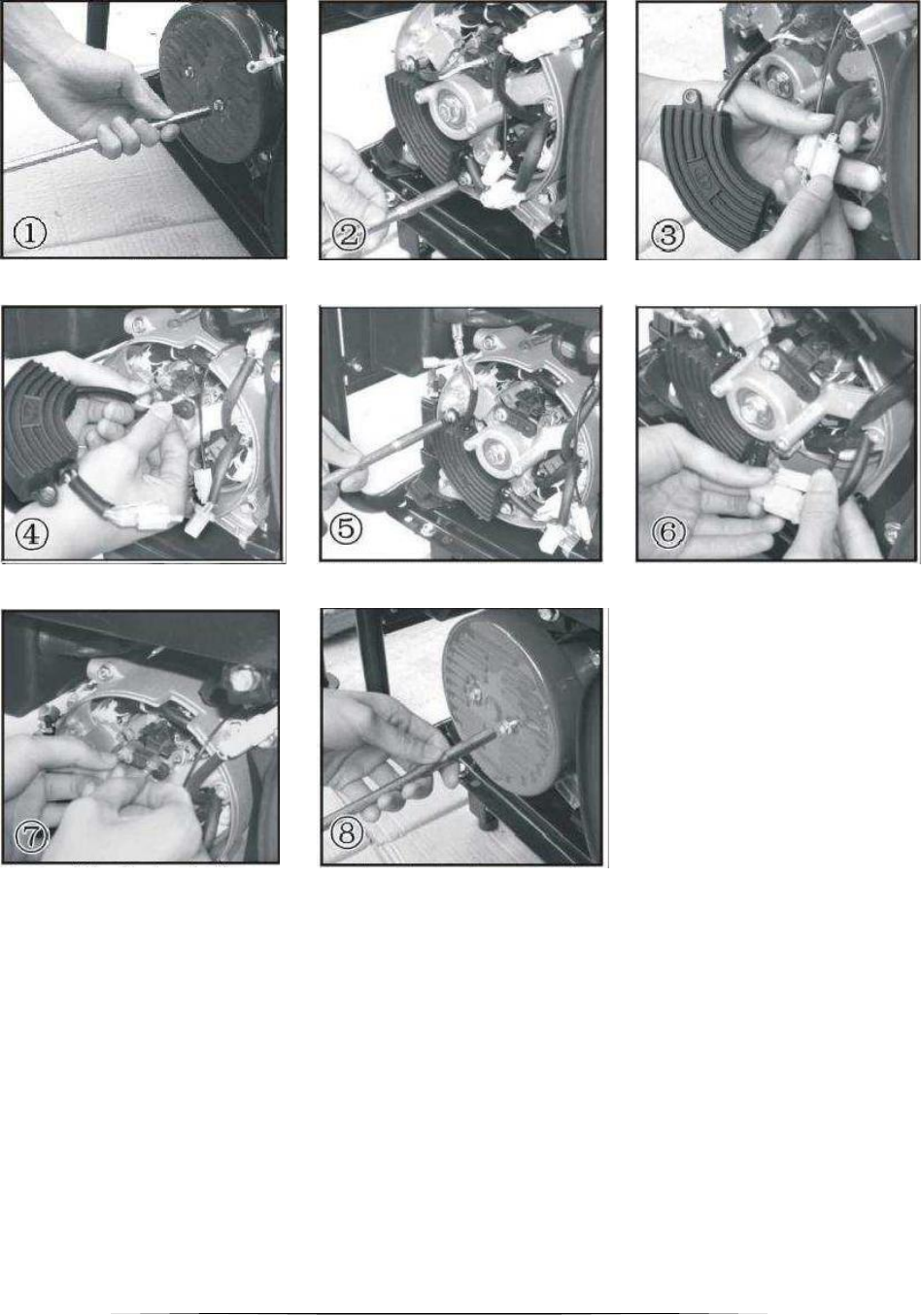

Changing/Inspecting the AVR
Remove the 2 bolts on the
generator cover.
Remove the 2 wires from the
AVR on the carbon brush.
Insert and connect the 2
wires from the AVR, be sure
to connect + and – correctly
Remove the 2 bolts holding
the AVR.
Install the new AVR with the 2
bolts.
Replace the back cover of
the generator and secure
with the 2 bolts.
Disconnect the wire clip.
Reconnect the wire clip.
