Software settings
Operating Instructions 581 - 00.0 - 02/2015 97
Parameters for cutting mode

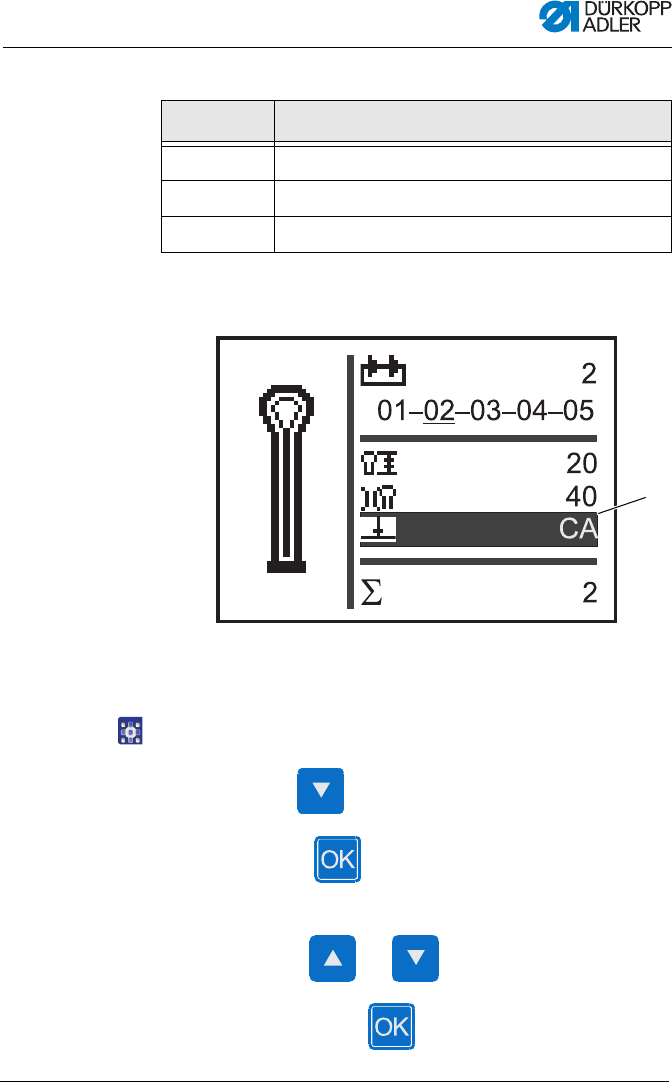

Abb. 65: Setting cutting mode in sequential mode
To set the cutting mode:
Step
1. Use the key to navigate to the field Cutting mode (1).
2. Press the key .
The cursor flashes.
3. Use the keys or to set the desired value.
4. Confirm with the key .
Parameter Function
0 = No cutting
CA = Cut after the seam end (Cut After)
CB = Cut before the start of the seam (Cut Before)
(1) - Cutting mode
①
