Software settings
Operating Instructions 581 - 00.0 - 02/201596

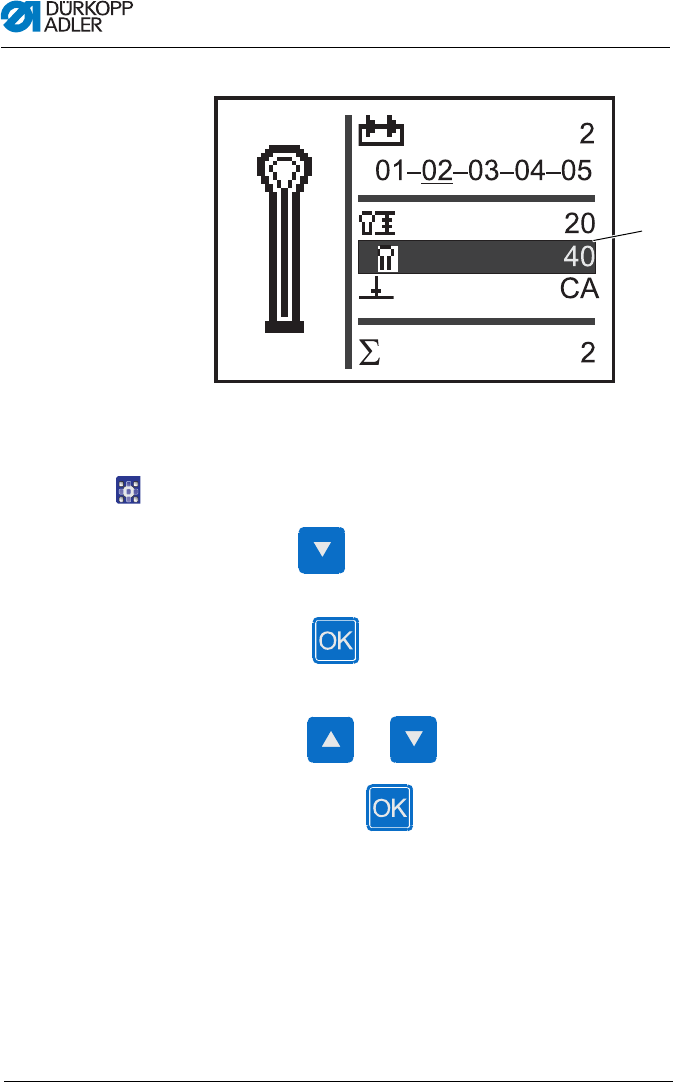

Abb. 64: Adjusting the thread tension in sequential mode
To set the thread tension:
Step
1. Use the key to navigate to the field Thread
tension (1).
2. Press the key .
The cursor flashes.
3. Use the keys or to set the desired value.
4. Confirm with the key .
You can also adjust the cutting mode.
8.1.6 Adjusting the cutting mode
On the display, the field (1) indicates the cutting mode. The cutting
mode determines when and whether a buttonhole is to be cut
during the sewing process.
For cutting mode, you can switch between the following parameters:
(1) - Thread tension field
①
