Software settings
Operating Instructions 581 - 00.0 - 02/2015 95

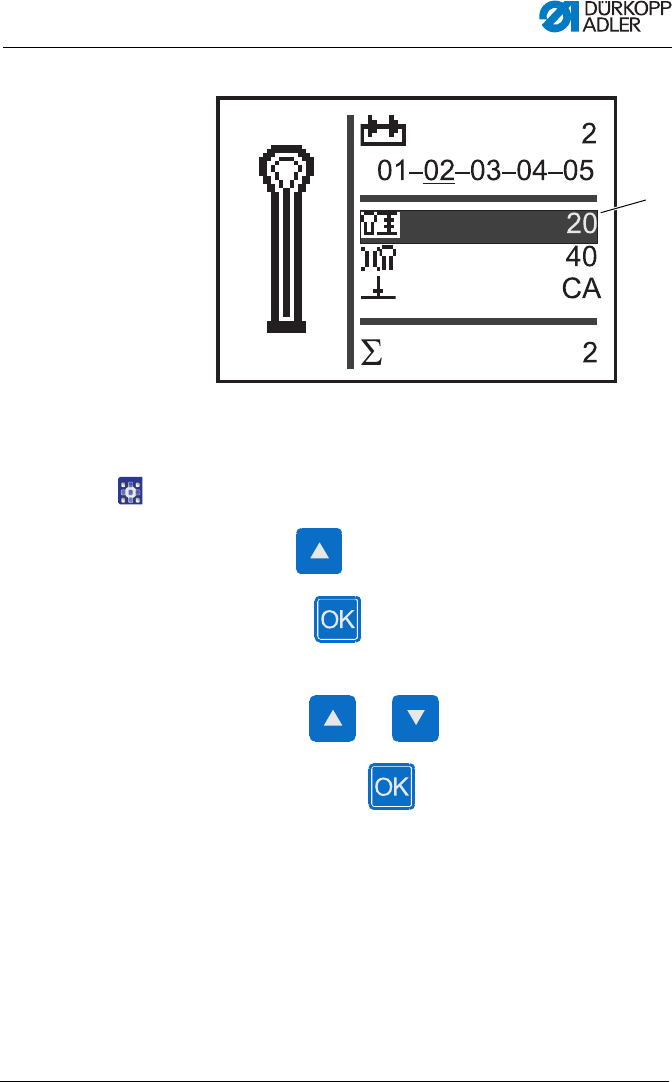

Abb. 63: Adjusting the cutting length in sequential mode
To set the cutting length:
Step
1. Use the key to navigate to the field Cutting length (1).
2. Press the key .
The cursor flashes.
3. Use the keys or to set the desired value.
4. Confirm with the key .
You can also adjust the thread tension.
8.1.5 Adjusting the thread tension
On the display, the field (1) indicates the thread tension during
sewing. You can adjust the thread tension.
(1) - Cutting length
①
