Software settings
Operating Instructions 581 - 00.0 - 02/2015 93

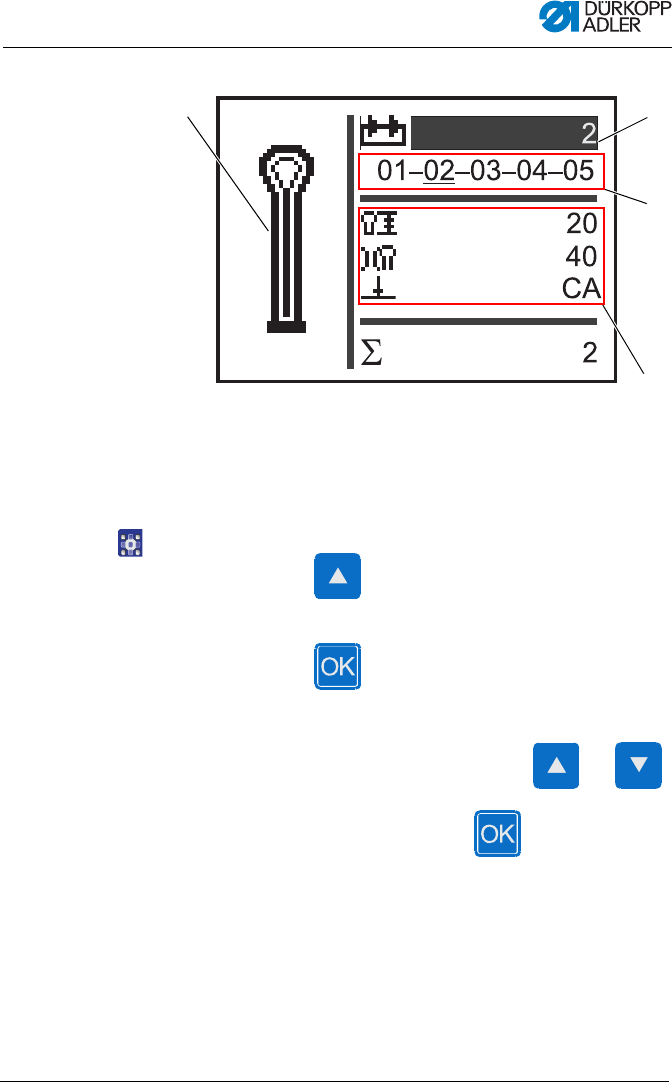

Abb. 62: Sequential mode
Selecting a sequential number
To select the sequential number:
Step
1. Using the key , navigate to the field Sequential
number (4).
2. Press the key .
The cursor flashes within the desired row.
3. Select the desired number using the keys or .
4. Confirm the selection with the key .
(1) - Buttonhole shape
(2) - Values
(3) - Sequence
(4) - Sequential number
①④
②
③
