Software settings
Operating Instructions 581 - 00.0 - 02/2015 91
8 Software settings
8.1 User level
In the user level, the most important information for sewing oper-
ation is displayed.
8.1.1 Basic operation
You can change the values at user level by pressing
the
corresponding key on the control panel ( 4.1 Control panel,
p. 26).
Depending on the setting in the sequence menu, either sequential
mode or single buttonhole mode is available ( 8.2 Buttonhole
programming, p. 99).
You can tell which mode is activated by the fact that it is highlighted
in the topmost field of the display after switching on
( 4.2.1 Structure, p. 31).
8.1.2 Single buttonhole mode
On user level, you can select a buttonhole from 50 pre-programed
buttonholes.

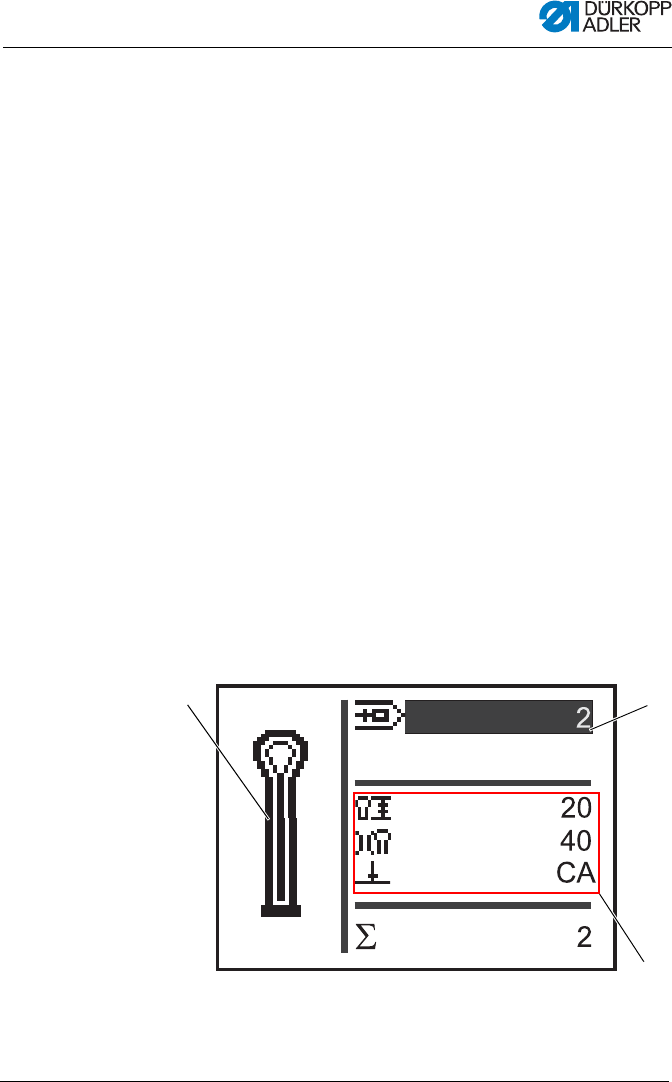

Abb. 61: Single buttonhole mode
(1) - Buttonhole shape (2) - Values
(3) - Buttonhole number
③
②
①
