Setup
Operating Instructions 581 - 00.0 - 02/2015 85
• Viscosity at 40 °C: 10 mm²/s
• Flash point: 150 °C
To lubricate the machine components:
Step
1. Unscrew the head and side covers.

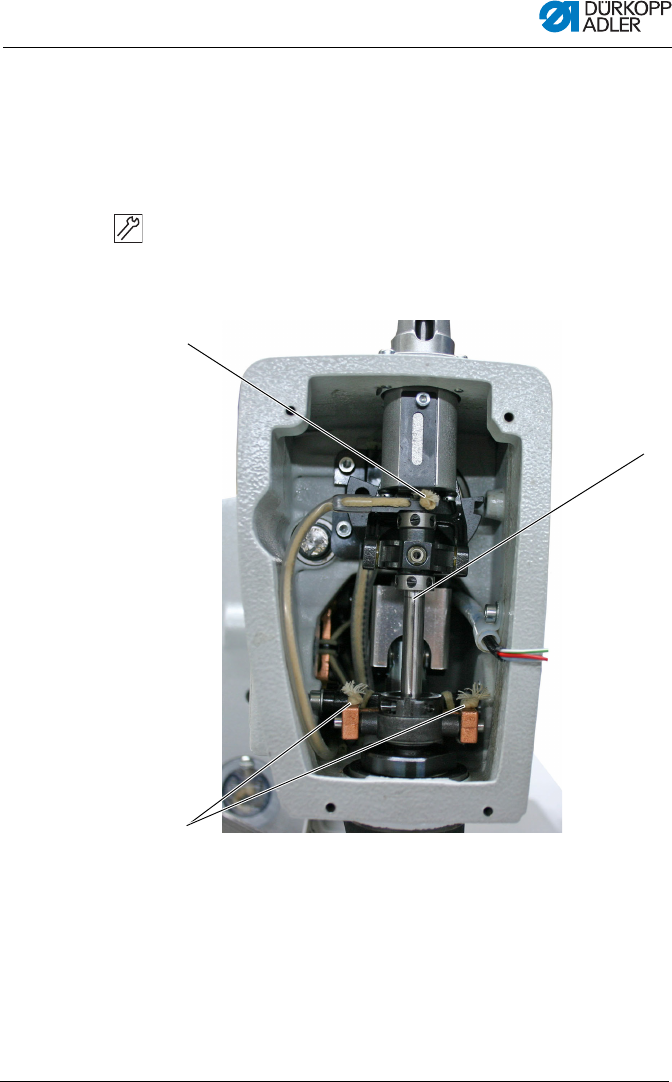

Abb. 55: Lubricating (1)
2. Soak the wicks (1) and (2) as well as felt (5) with a little oil.
3. Add 1-2 drops of oil to the pendulum sleeve and needle
bar
(3).
(1) - Wick
(2) - Wick
(3) - Needle bar
①
③
②
