Setup
Operating Instructions 581 - 00.0 - 02/201576
3. Tighten the counternut (1) slightly.

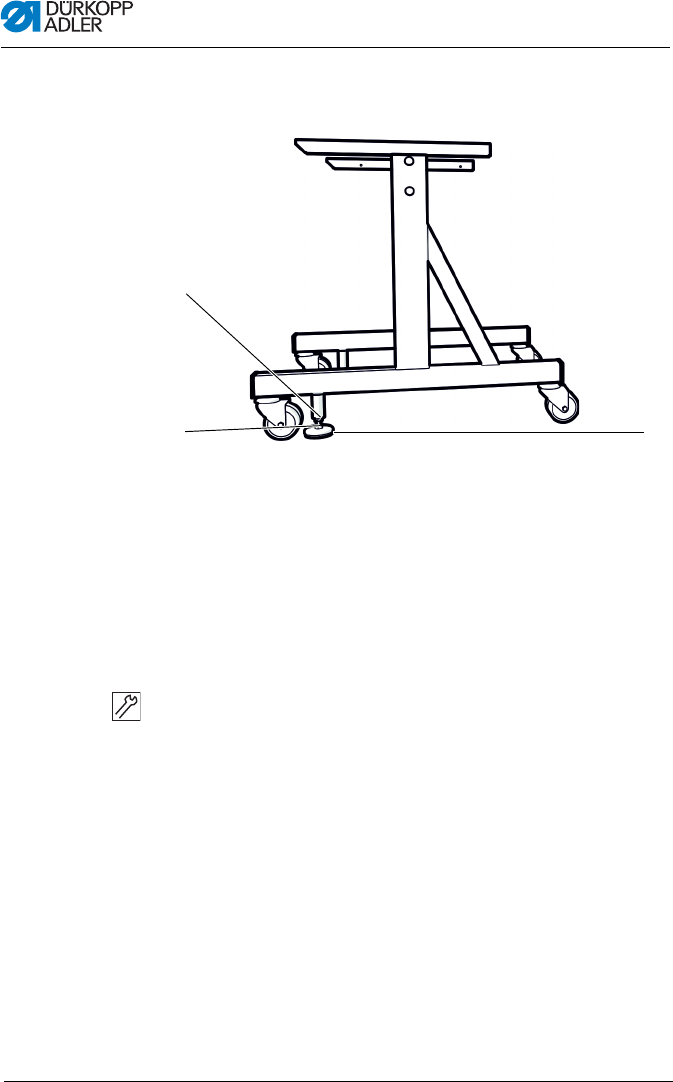

Abb. 47: Securing the frame
7.8 Setting the working height
The working height is continuously adjustable between 73 cm and
90 cm (measured to the upper edge of the table plate).
To set the working height:
Step
1. Loosen the screws (1) on both sides of the frame.
2. Adjust the table plate of the machine so that it is level at the
desired working height.
Pull out or push in the table plate evenly at both sides
to
prevent it from jamming.
3. Tighten the screws (1).
(1) - Counternut
(2) - Nut
(3) - Support plate
①
② ③
