Setup
Operating Instructions 581 - 00.0 - 02/2015 75
4. Align the thread reel holder (2) and unwinding bracket (1)
so that the thread reel holder and unwinding bracket are par-
allel to one another.

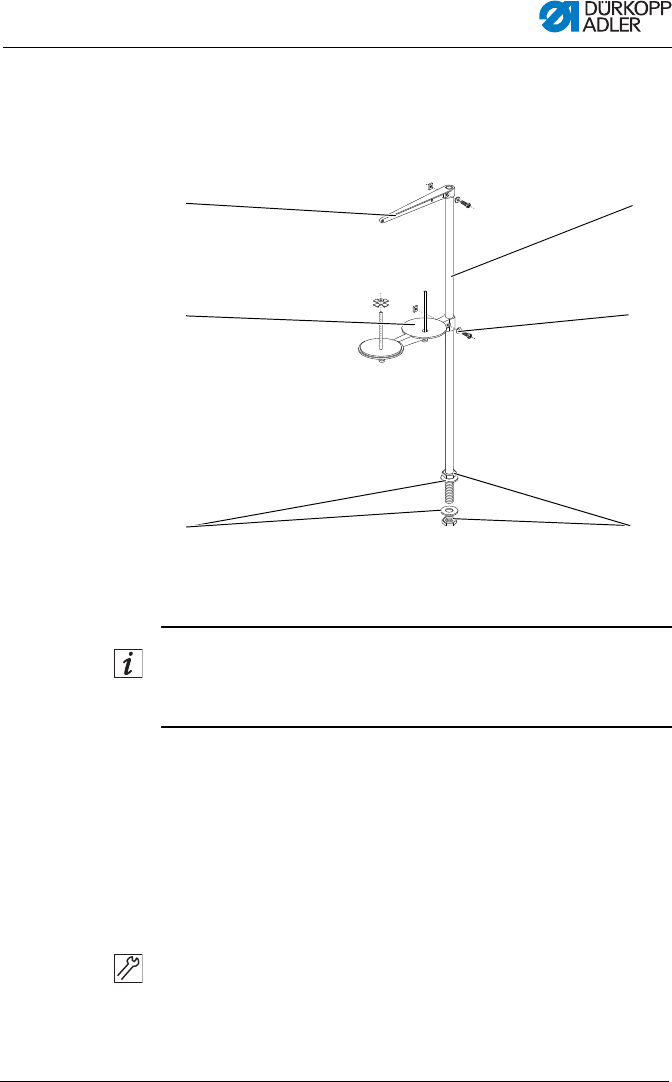

Abb. 46: Securing the reel stand
Information
You must set the centering piece to suit the type of thread reel.
Incorrect settings can result in sewing disruptions.
7.7 Securing the frame
To ensure that the frame cannot move unintentionally, you have
the option of securing it.
To secure the frame:
Step
1. Screw both support plates (3) on the nut (2) as far down
as
required to ensure that the machine is firm and secure.
2. Screw the counternut (1) upward.
(1) - Unwinding bracket
(2) - Thread reel holder
(3) - Washers
(4) - Nuts
(5) - Washer
(6) - Reel stand
② ⑤
⑥①
④③
