Setup
Operating Instructions 581 - 00.0 - 02/201574
7.5 Using the ring bolt
The ring bolt makes it easier for you to lift the machine into the
frame. You can use it e.g.
to lift the machine with a suspension
crane or you can also thread a stable rod through the ring bolt and
then have 2 people lift the machine. The ring bolt is in the acces-
sory pack.
To use the ring bolt:
Step
1. Screw the ring bolt (1) onto the machine.

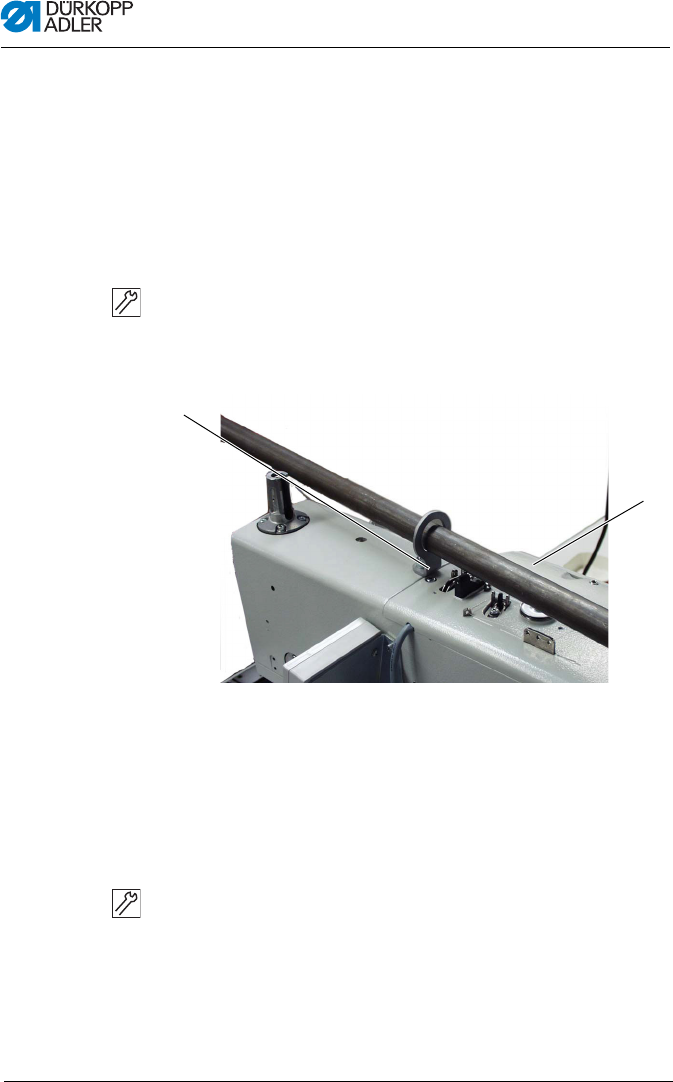

Abb. 45: Using the ring bolt
2. Lift the machine (2) into the frame.
3. When the machine is fitted, unscrew the ring bolt (1) again.
7.6 Securing the reel stand
Step
1. Insert the reel stand (6) into the borehole of the table plate
and secure with nuts (4) and washers (3).
2. Fit the thread reel holder (2).
3. Fit the unwinding bracket (1).
(1) - Ring bolt (2) - Machine
