Maintenance
Operating Instructions 581 - 00.0 - 02/201568
Information
If you want to use a cutting block with a different length, you must
make the appropriate setting on the control panel
(
Service Instructions).
Changing the blade
Step
1. Loosen screw (5) or (6) (hex key in the accessory pack).
2. Remove blade (4) or (7).
3. Insert the new blade and tighten with screw (5) or (6).

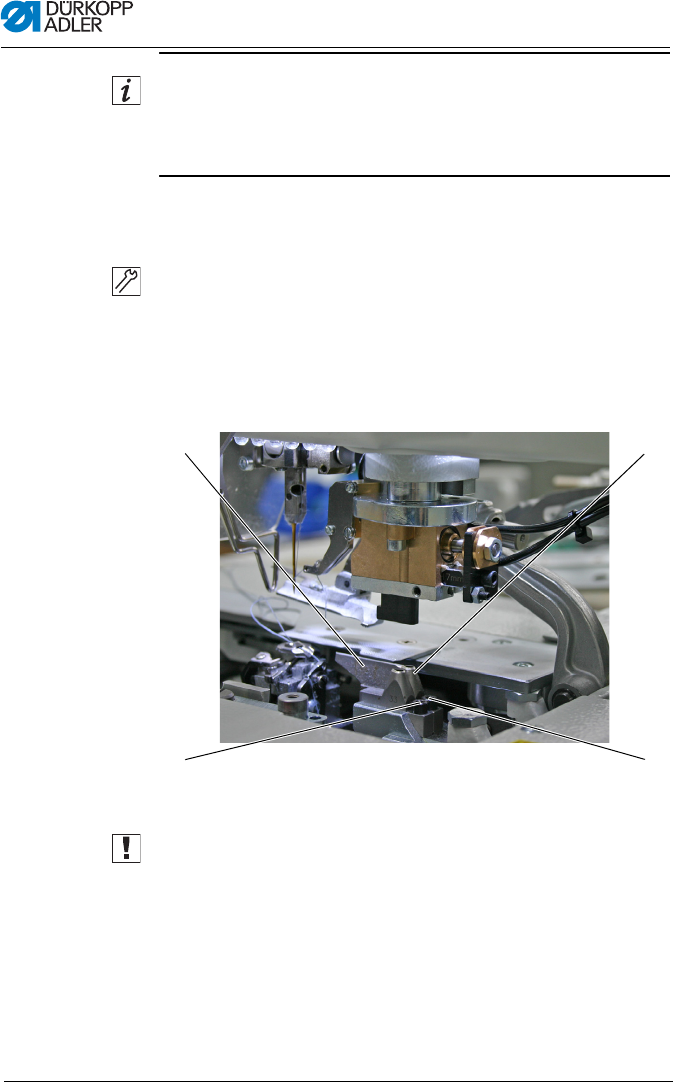

Fig. 41: Changing the blade with multiflex
Important
If you cannot remove the blade, slightly loosen the screw of the
second blade.
(4) - Blade
(5) - Screw
(6) - Screw
(7) - Blade
⑦
⑧
⑥
⑤
