Maintenance
Operating Instructions 581 - 00.0 - 02/2015 67
6.4.2 Sub-class with multiflex
Changing the cutting block
Step
1. Remove compressed air supply hose ( S. 82).
2. Press the cutting block holder (1) down carefully with
a screwdriver.

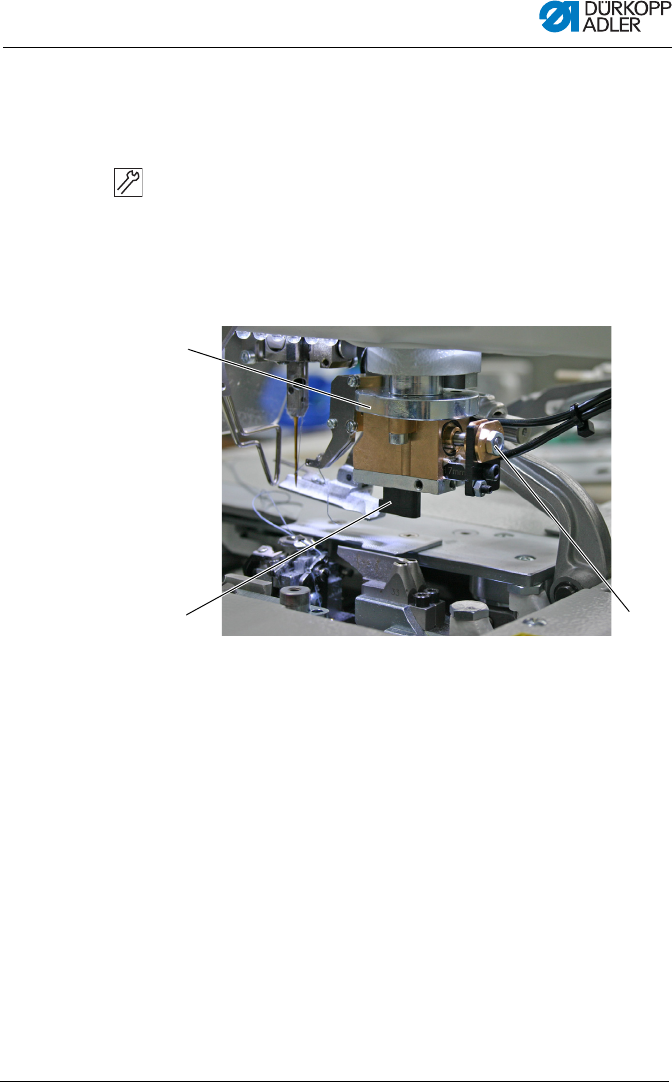

Fig. 40: Changing the cutting block with multiflex (1)
3. Loosen the screw (3).
4. Pull the cutting block (2) out to the left.
5. Push the new cutting block (2) into the guide and tighten
the screw (3).
6. Reconnect the compressed air hose.
When the compressed air is connected ( 7.13 Connecting the
pneumatic system, S. 82), the cutting block holder automatically
moves back up.
(1) - Cutting block holder
(2) - Cutting block
(3) - Screw
③
①
②
