Maintenance
Operating Instructions 581 - 00.0 - 02/201566

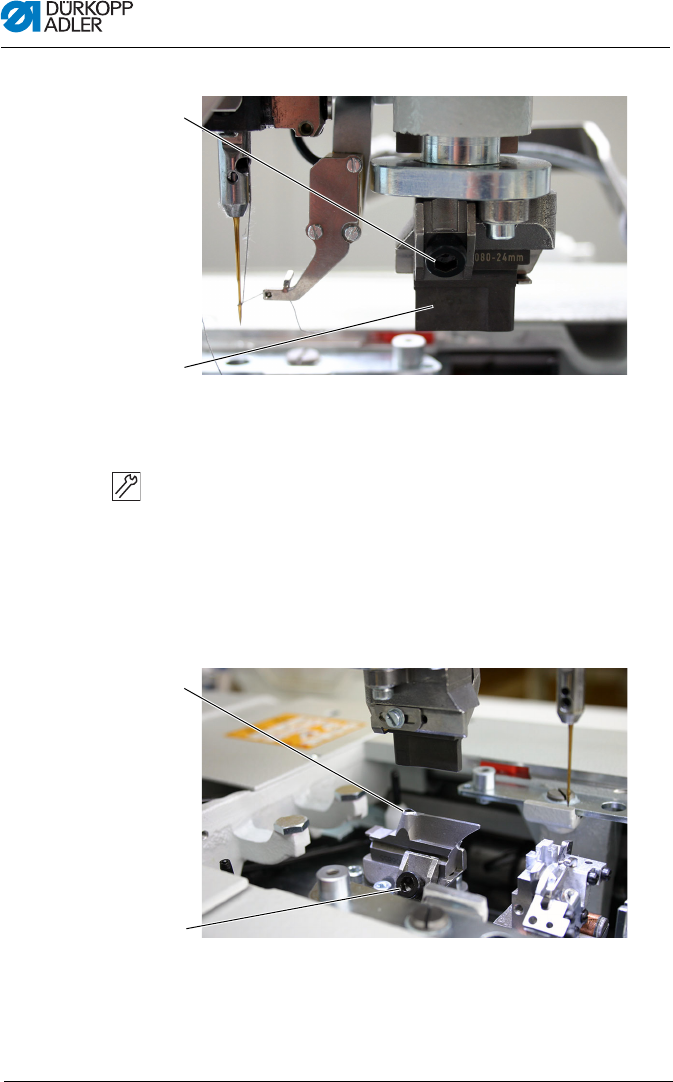

Fig. 38: Changing the cutting block
Changing the blade
Step
1. Loosen the screw (4).
2. Pull the blade (3) forward and remove.
3. Insert the new blade and push to the end stop.
4. Retighten the screw (4).
Fig. 39: Changing the blade
(1) - Screw (2) - Cutting block
①
②
(3) - Blade (4) - Screw
④
③
